Subaru Legacy Owners Manual: Access key

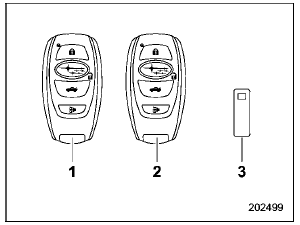

Access key

  1. Access key (main)
  2.  Access key (sub)
  3.  Key number plate

The vehicle has two access keys and a key number plate. For details about the key number plate, refer to "Key number plate" .

A mechanical key is attached to each access key. The mechanical key is used for the following operations.

  •  Locking and unlocking the driver's door
  •  Locking and unlocking the glove box
  •  Unlocking the trunk lid (Legacy)

You cannot unlock the glove box without using the mechanical key. You can keep the glove box locked when you leave your vehicle and the access key (with the mechanical key removed) at a parking facility.

Access key

  1. Release button
  2.  Mechanical key

While pressing the release button of the access key, take out the mechanical key.

Keyless access with push-button start system (if equipped)
The keyless access with push-button start system allows you to perform the following functions when you are carrying the access key.  Locking and unlocking of the doors and rear gate (Ou ...
