Subaru Legacy Service Manual: Adjustment

1. Disconnect the ground terminal from battery sensor. NOTE

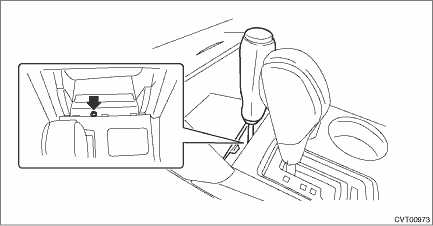

2. Release the shift lock using a screwdriver to shift the select lever to the “N” range.

3. Lift up the vehicle.

4. Remove the center exhaust pipe. Center Exhaust Pipe > REMOVAL

5. Loosen the two bolts holding the inhibitor switch.

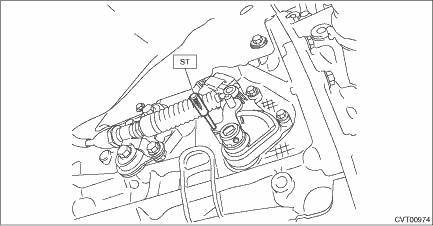

6. Insert the ST vertically into the holes of the shifter arm and switch body.

ST 499267300STOPPER PIN

7. Tighten the two bolts holding the inhibitor switch.

Tightening torque:

5 N·m (0.5 kgf-m, 3.7 ft-lb)

8. Repeat the inspection of the inhibitor switch. If the inhibitor switch is determined to be “faulty”, replace it.

Removal
1. Disconnect the ground terminal from battery sensor. NOTE2. While pressing the shift lock release button, shift the select lever to the “N” range.3. Lift up the vehicle.4. Remove the ce ...

Installation
1. Install the inhibitor switch to the transmission case temporarily.2. Connect the inhibitor harness connector.3. Install the shifter arm and fix with the spring pin.NOTE:Use new spring pin.(A)Spring ...
