Subaru Legacy Service Manual: Adjustment

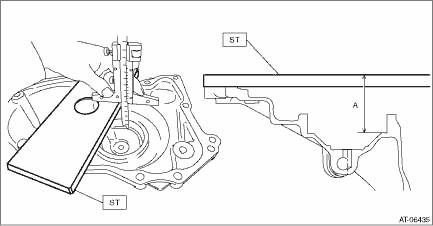

1. Measure the height “A” from the ST upper face to the ball bearing catch surface.

ST 499575600GAUGE

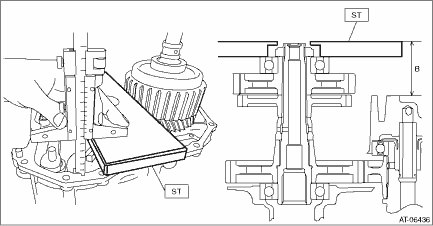

2. Measure the height “B” from the ST to the mating surface of the transmission case.

ST 499575600GAUGE

3. Obtain the thickness of transfer drive gear shim using the following formula to select one to three transfer drive gear shims.

T (mm) = A − B − (0.05 — 0.25)

[T (in) = A − B − (0.002 — 0.01)]

T: Shim thickness

A: Height from the ST upper face to the ball bearing catch surface

B: Height from ST to transmission case mating surface

0.05 — 0.25 mm (0.002 — 0.01 in): Clearance

Transfer drive gear shim

Part No.

Thickness mm (in)

33279AA090

0.3 (0.012)

33279AA100

0.4 (0.016)

33279AA110

0.5 (0.020)

Removal
1. Remove the transmission assembly. Automatic Transmission Assembly > REMOVAL2. Remove the extension case. Extension Case > REMOVAL3. Remove the transfer clutch assembly. Transfer Clutch > REMOVAL ...

Installation
1. Install the reduction driven gear assembly and spacer oil.Tightening torque:17 N·m (1.7 kgf-m, 12.5 ft-lb)2. Select the transfer drive gear shim. Reduction Drive Gear > ADJUSTMENT3. Install ...
