Subaru Legacy Service Manual: Adjustment

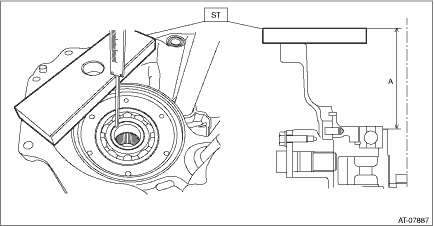

1. Measure depth “A” from the ST upper face to the washer catch surface.

ST 398643600GAUGE

2. Install the forward clutch assembly to intermediate case.

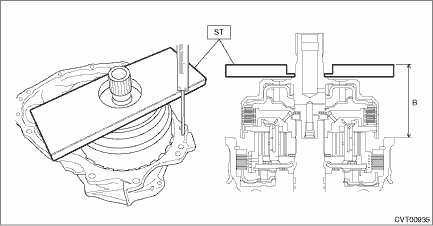

3. Setting the ST, measure height “B” from the ST upper side to the intermediate case mating surface.

ST 499575600GAUGE

4. Obtain the thickness of washer using the following formula.

Calculation formula:

T (mm) = (A − 15) − (B − 15) − (0.75 — 0.95)

[T (in) = (A − 0.591) − (B − 0.591) − (0.030 — 0.037)]

T: Washer thickness

A: Depth from the ST upper face to the washer catch surface

B: Height from the upper surface of the ST to the mating surface of the intermediate case

15 mm (0.591 in): Thickness of ST

0.75 — 0.95 mm (0.030 — 0.037 in): Clearance

5. Select the washer to meet the value “T” obtained from step 4).

Washer

Part No.

Washer thickness mm (in)

803034044

0.8 (0.031)

803034045

0.9 (0.035)

803034040

1.0 (0.039)

803034046

1.1 (0.043)

803034041

1.2 (0.047)

803034047

1.3 (0.051)

803034042

1.4 (0.055)

803034048

1.5 (0.059)

803034043

1.6 (0.063)

Removal
1. Remove the transmission from the vehicle. Automatic Transmission Assembly > REMOVAL2. Remove the extension case. Extension Case > REMOVAL3. Remove the rear drive shaft. Rear Drive Shaft > REMOVA ...

Installation
1. Select a washer. Forward Clutch Assembly > ADJUSTMENT2. Install the selected washer.3. Install the forward clutch assembly.4. Install the thrust needle bearing.NOTE:Install the thrust needle beari ...
