Subaru Legacy Service Manual: Adjustment

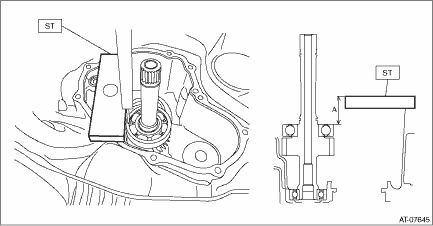

1. Measure height “A” from the ST upper face to the bearing end face using the ST.

ST 398643600GAUGE

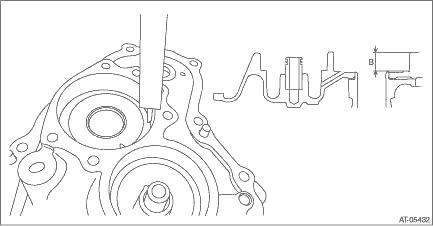

2. Measure depth “B” from the converter case cover upper face to the bearing catch surface.

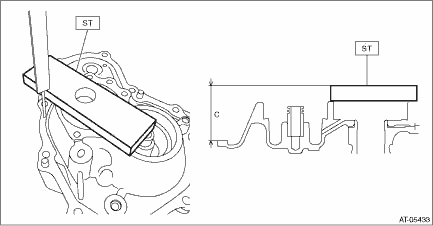

3. Using the ST, measure height “C” from the ST upper face to the converter case cover mating surface.

ST 398643600GAUGE

4. Using the following formula, calculate clearance “T” to select shims.

Calculation formula:

T mm = (A − 15) − ((C − 15) − B)

[T in = (A − 0.591) − ((C − 0.591) − B)]

T: Clearance

A: Depth from the ST upper face to the bearing end surface

B: Depth from the converter case cover upper face to the bearing catch surface

C: Height from the ST upper face to the converter case cover mating surface

15 mm (0.591 in): Thickness of ST

Clearance “T”

mm (in)

Thickness of shim

mm (in)

Part No.

1.070 — 1.174 (0.042 — 0.045)

1.0 (0.039)

31288AA160

1.175 — 1.274 (0.046 — 0.049)

1.1 (0.043)

31288AA170

1.275 — 1.374 (0.050 — 0.053)

1.2 (0.047)

31288AA180

1.375 — 1.474 (0.054 — 0.057)

1.3 (0.051)

31288AA220

1.475 — 1.580 (0.058 — 0.062)

1.4 (0.055)

31288AA230

Removal
1. Remove the transmission assembly from the vehicle. Automatic Transmission Assembly > REMOVAL2. Remove the air breather hose. Air Breather Hose > REMOVAL3. Remove the oil pan and control valve bod ...

Installation
1. Clean the mating surface of converter case cover and converter case.2. Select the shim for front reduction drive gear. Front Reduction Drive Gear > ADJUSTMENT3. Apply CVTF to the shims and install ...
