Subaru Legacy BN/BS (2015-2019) Service Manual: Adjustment

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Reduction driven gear / Adjustment

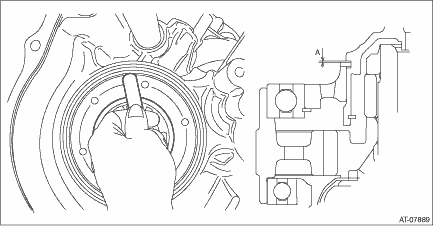

1. Measure clearance “A” between snap ring and transmission case.

Specification:

0.05 — 0.25 mm (0.002 — 0.01 in)

2. If clearance “A” is out of standard, select the snap ring within standard.

Snap ring
Part No.	Thickness mm (in)
805100460	2.0 (0.079)
805100461	2.1 (0.083)
805100462	2.2 (0.087)
805100463	2.3 (0.091)
805100464	2.4 (0.094)
