Subaru Legacy Service Manual: Adjustment

CAUTION:

Do not rotate the roll connector to more than the specified number of turns. Otherwise, the roll connector internal wire may be broken.

When determining the end stop, rotate the connector slowly without applying excessive force. Applying excessive force at the end stop may break the internal wire.

1. Check that front wheels are positioned in straight ahead direction.

2. Rotate the roll connector counterclockwise until it stops.

3. Rotate the roll connector clockwise approx. 2.5 turns until “” marks are aligned.

NOTE:

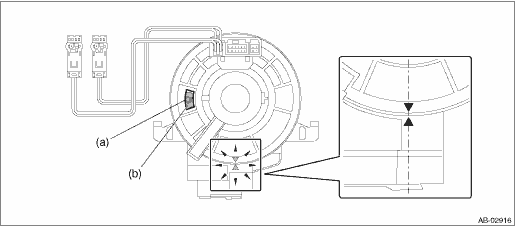

When the roll connector comes to the center position, the orange roller (b) can be seen from the sight glass (a).

Removal
CAUTION:Refer to “CAUTION” of “General Description” before handling the airbag system components. General Description > CAUTION1. Position the front wheels straight ahead.2. T ...

Installation
CAUTION:If the steering wheel and steering angle sensor are removed, perform “VDC sensor midpoint setting mode” of the VDC. VDC Control Module and Hydraulic Control Unit (VDCCM&H/U) > ADJ ...
