Subaru Legacy BN/BS (2015-2019) Service Manual: Airbag connector procedure

1. OCCUPANT DETECTION SYSTEM (BETWEEN AIRBAG REAR HARNESS AND SEAT HARNESS)

1. How to disconnect:

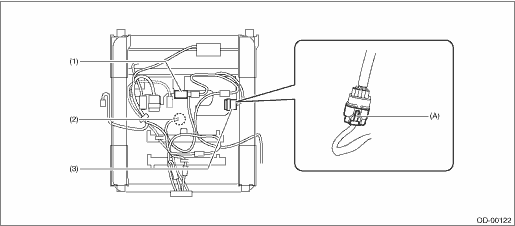

Press the lock arm (A) and disconnect the connector.

CAUTION:

When pulling the slide lock or disconnecting connector, be sure to hold the connector, not the harness.

(A)

Lock arm

(1)

Occupant detection control module

(2)

Occupant detection sensor

(3)

Occupant detection connector & harness

2. How to connect:

Holding the connector, push it in securely until a clicking sound is heard.

CAUTION:

Be sure to insert the connector in until it is locked. Then pull it gently to make sure that it is locked.

2. AIRBAG CONTROL MODULE

Refer to the airbag system section. Airbag Connector > PROCEDURE

3. BUCKLE SWITCH RH

Refer to the airbag system section. Airbag Connector > PROCEDURE
