Subaru Legacy Service Manual: Assembly

CAUTION:

When replacing the reservoir tank, adhere the label to the position shown in the figure. (C0 and C5 models)

Fluid caution label:

C0 and C5 models

Part No. 25080GA010

(a)

Fluid caution label

(b)

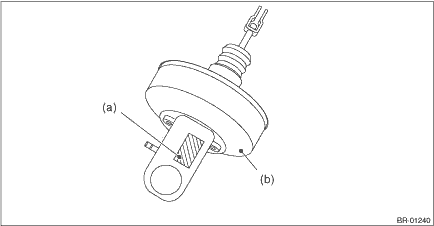

Brake booster

1. Install the seal to the cylinder body assembly.

2. Install the reservoir tank.

CAUTION:

Be careful not to tighten a vise excessively.

(1) Place the master cylinder assembly between aluminum plates and fix it on a vise.

(2) Drive the pin using a punch and a hammer to install the reservoir tank.

Removal
CAUTION:• Do not allow brake fluid to come in contact with the painted surface of the vehicle body. If it does, wash off with water and wipe away completely.• Prepare a container to catch ...

Installation
1. Replace the seal sub assembly for the master cylinder assembly with a new part.CAUTION:Be careful not to install the seal sub assembly in the wrong location.(a)Primary piston(b)Seal sub ASSY(c)Inst ...
