Subaru Legacy Service Manual: Assembly

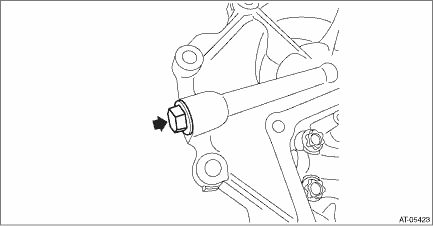

1. Install the plugs.

NOTE:

Use new O-rings.

Apply CVTF to the O-rings.

Tightening torque:

25 N·m (2.5 kgf-m, 18.4 ft-lb)

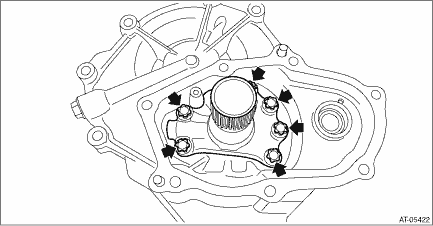

2. Using ST, install the center support COMPL.

ST 18270KA010SOCKET (E16)

Tightening torque:

21.5 N·m (2.2 kgf-m, 15.9 ft-lb)

Disassembly
1. Using ST, remove the center support COMPL.ST 18270KA010SOCKET (E16)2. Remove the plug and O-ring. ...
