Subaru Legacy BN/BS (2015-2019) Service Manual: Assembly

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Oil pump chain / Assembly

1. DRIVE SPROCKET

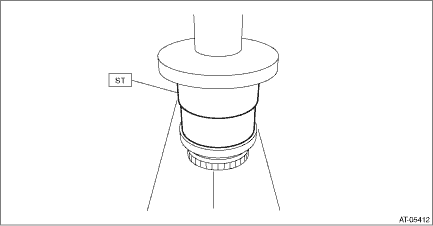

1. Using the ST, install the ball bearing.

NOTE:

Use a new ball bearing.

ST 499755602

PRESS SNAP RING

Removal

1. Remove the transmission assembly from the vehicle. Automatic Transmission Assembly > REMOVAL2. Remove the torque converter assembly. Torque Converter Assembly > REMOVAL3. Remove the oil pump chai ...

Installation

1. Clean the mating surface of oil pump chain cover and converter case cover.2. Using the ST, install the oil seal.ST 499755602PRESS SNAP RING3. Install the drive sprocket and install the snap ring ...
