Subaru Legacy BN/BS (2015-2019) Service Manual: Assembly

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Rear drive shaft / Assembly

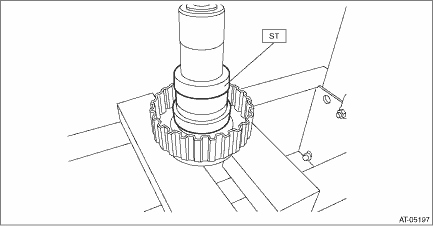

1. Using the ST, install the ball bearing.

NOTE:

• Use a new ball bearing.

• Apply CVTF to press-fitting surface of ball bearing.

ST 399513600

INSTALLER

Disassembly

1. Remove the ball bearing using ST.ST 498077600REMOVER ...
