Subaru Legacy Service Manual: Assembly

1. Install the hinge COMPL - front hood.

Tightening torque:

25 N·m (2.5 kgf-m, 18.4 ft-lb)

2. Install the stay assembly - front hood.

Tightening torque:

20 N·m (2.0 kgf-m, 14.8 ft-lb)

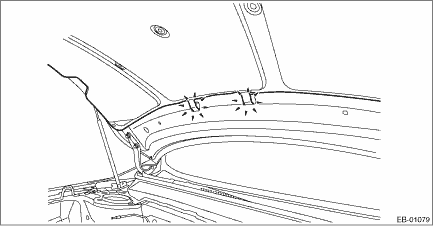

3. Install the insulator - front hood.

NOTE:

Securely insert the claws of the insulator - front hood.

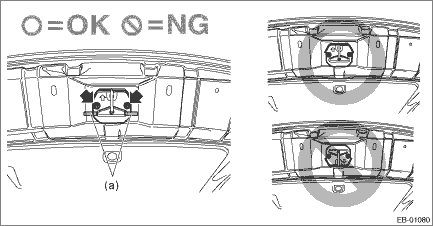

4. Align the alignment marks (a), and install the striker - front hood to the hood COMPL - front.

CAUTION:

When installing the striker - front hood, make sure that the front and rear sides are positioned in a correct direction.

Tightening torque:

33 N·m (3.4 kgf-m, 24.3 ft-lb)

NOTE:

It is not necessary to adjust the striker - front hood because there is no span of adjustable range.

Disassembly
CAUTION:• Do not damage the piston rods and oil seals of stay assembly - front hood.• Never disassemble the stay assembly - front hood: They contain gas.• The hood COMPL - front is h ...
