Subaru Legacy BN/BS (2015-2019) Service Manual: Assembly

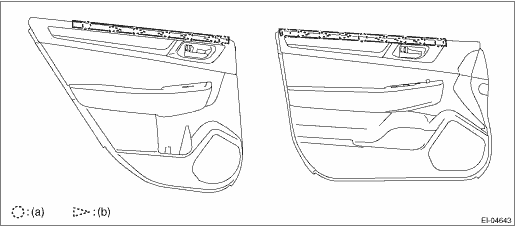

1. Bend the claws while pushing the weather strip - door INN against the trim panel - door so that there is no gap.

CAUTION:

Beware of the direction of folding the claws.

(a)

Rivet

(b)

Direction of folding claws

2. Install the rivet, and apply unwoven cloth tape over the rivet crimped section.

CAUTION:

Set the height of rivet crimped section as 3 mm (0.12 in). If the crimp is not sufficient, press it with pliers, etc. in order not to interfere the trim panel - door.

Apply unwoven cloth tape so that the rivet crimped section is covered. If unwoven cloth tape is not applied, a knocking noise may occur when the door panel contacts the rivet crimped section.

Preparation tool and item:

Hand riveter (corresponding to φ3.2 mm (0.13 in))

Rivet

Unwoven cloth (cut into 15 x 15 mm (0.59 x 0.59 in))

3. After installing the weather strip - door INN, perform the following checks.

Make sure there are no gaps between the weather strip - door INN and the trim panel - door.

Make sure there are no looseness when pulling the weather strip - door INN lightly.

Removal
1. FRONT DOORCAUTION:Refer to “CAUTION” of “General Description” before handling the airbag system components. General Description > CAUTION1. Disconnect the ground terminal f ...

Installation
1. Before installation, check the following items.• Cable is free from deformation such as fray.• Grease is applied sufficiently to cable joints.If grease is insufficient, add it as necess ...
