Subaru Legacy Service Manual: Bulkhead wiring harness (in compartment) location

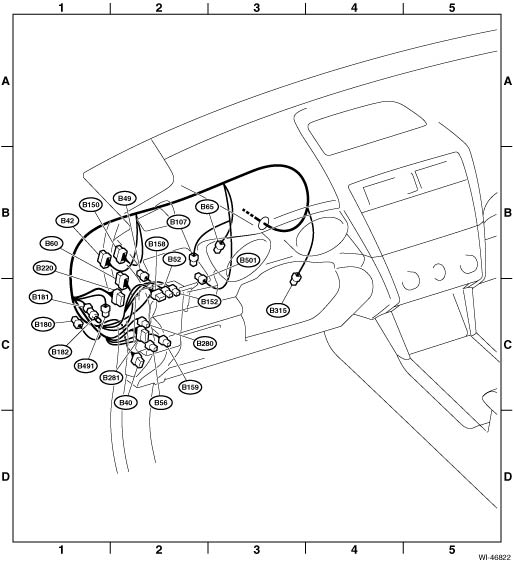

Subaru Legacy Service Manual / Wiring system / Bulkhead wiring harness (in compartment) location

Connector

Connecting to

No.

Pole

Color

Area

No.

Description

B40

16

C-2

Data link connector

B42

26

B-1

SRF CM

B49

6

B-2

i115

Instrument panel wiring harness

B52

4

B

C-2

F/B

B56

8

Br

C-2

B60

86

C-2

i112

Instrument panel wiring harness

B65

5

B-3

Stop light & brake switch

B107

2

L

B-2

Clutch switch

B150

24

B-2

Auto headlight beam leveler CM

B152

4

C-2

F/B

B158

20

C-2

B159

4

C-2

B180

4

C-1

Remote engine start CM (without push button start)

8

C-1

Remote engine start CM (with push button start)

B181

2

C-1

B182

Short connector

B182

2

C-2

B181

B220

21

Br

C-2

Relay holder

B280

8

B

C-2

Body integrated unit

B281

32

C-2

B315

6

B

C-3

Accelerator pedal position sensor

B491

5

C-1

J/C

B501

5

B-2

Clutch start switch
