Subaru Legacy Service Manual: Component

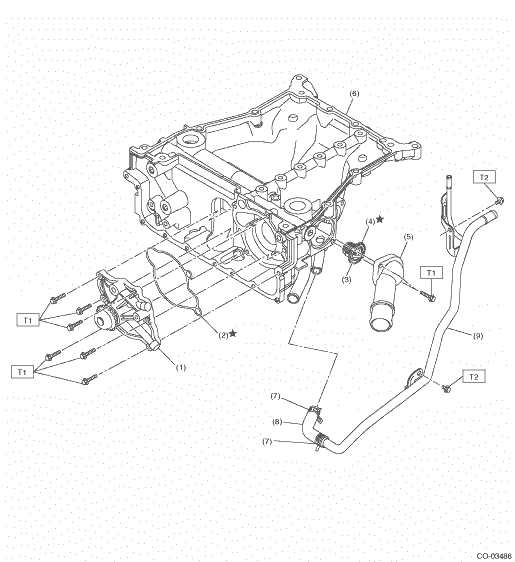

1. WATER PUMP AND WATER PIPE

(1)

Water pump ASSY

(6)

Oil pan upper

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Gasket

(7)

Clip

T1:

6.4 (0.7, 4.7)

(3)

Thermostat

(8)

Hose

T2:

16 (1.6, 11.8)

(4)

Gasket

(9)

Water return pipe

(5)

Thermostat cover

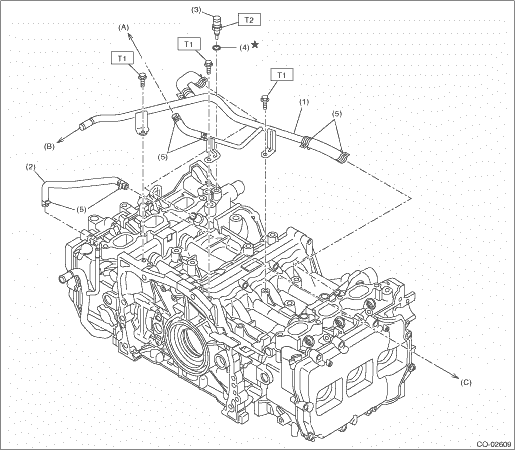

2. ENGINE COOLANT TEMPERATURE SENSOR AND HEATER HOSE

(A)

To the throttle body

(B)

To heater hose

(C)

To the throttle body

(1)

Heater pipe

(4)

Gasket

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Preheater hose

(5)

Clip

T1:

19 (1.9, 14.0)

(3)

Engine coolant temperature sensor

T2:

22 (2.2, 16.2)

3. RADIATOR AND RADIATOR FAN

(1)

Radiator

(13)

CVTF pipe

(25)

Over flow hose

(2)

Radiator upper bracket RH

(14)

CVTF radiator inlet hose

(26)

Reservoir tank cap

(3)

Radiator upper bracket LH

(15)

CVTF radiator outlet hose

(27)

Reservoir tank

(4)

Radiator upper cushion

(16)

Clip

(5)

Drain plug

(17)

Radiator sub fan

Tightening torque: N·m (kgf-m, ft-lb)

(6)

O-ring

(18)

Radiator main fan

T1:

2.6 (0.3, 1.9)

(7)

Radiator lower cushion

(19)

Radiator fan shroud

T2:

3.9 (0.4, 2.9)

(8)

Radiator inlet hose RH

(20)

Radiator fan control module (sub)

T3:

6.4 (0.7, 4.7)

(9)

Radiator inlet hose LH

(21)

Radiator fan control module (main)

T4:

7.5 (0.8, 5.5)

(10)

Radiator outlet hose

(22)

Radiator sub fan motor

T5:

12 (1.2, 8.9)

(11)

Clip

(23)

Radiator main fan motor

(12)

Clip

(24)

Radiator fan harness
