Subaru Legacy Service Manual: Component

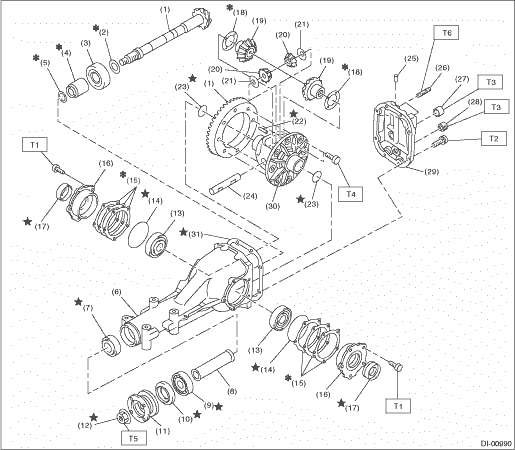

1. REAR DIFFERENTIAL (T-TYPE)

(1)

Hypoid driven gear and drive pinion set

(14)

O-ring

(27)

Filler plug

(2)

Pinion height adjusting washer

(15)

Side retainer shim

(28)

Drain plug

(3)

Rear bearing

(16)

Side retainer

(29)

Rear cover

(4)

Preload adjusting spacer

(17)

Side oil seal

(30)

Differential case

(5)

Preload adjusting washer

(18)

Side gear thrust washer

(31)

Gasket

(6)

Differential carrier

(19)

Side gear

(7)

Front bearing

(20)

Pinion mate gear

Tightening torque: N·m (kgf-m, ft-lb)

(8)

Spacer

(21)

Pinion mate gear washer

T1:

10.5 (1.1, 7.7)

(9)

Pilot bearing

(22)

Pinion shaft lock pin

T2:

29.5 (3.0, 21.8)

(10)

Front oil seal

(23)

Snap ring

T3:

49 (5.0, 36.1)

(11)

Companion flange

(24)

Pinion mate shaft

T4:

103 (10.5, 76.0)

(12)

Self-locking nut

(25)

Air breather cap

T5:

181.5 (18.5, 133.9)

(13)

Side bearing

(26)

Stud bolt

T6:

44 (4.5, 32.5)

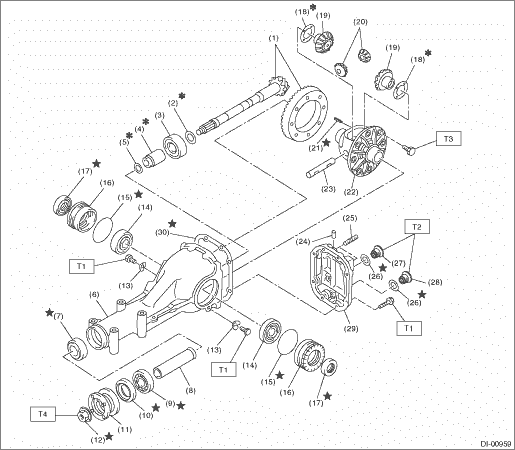

2. REAR DIFFERENTIAL (VA1-TYPE)

(1)

Hypoid driven gear and drive pinion set

(13)

Lock plate

(25)

Stud bolt

(2)

Pinion height adjusting washer

(14)

Side bearing

(26)

Gasket

(3)

Rear bearing

(15)

O-ring

(27)

Filler plug

(4)

Preload adjusting spacer

(16)

Side retainer

(28)

Drain plug

(5)

Preload adjusting washer

(17)

Side oil seal

(29)

Rear cover

(6)

Differential carrier

(18)

Side gear thrust washer

(30)

Gasket

(7)

Front bearing

(19)

Side gear

(8)

Spacer

(20)

Pinion mate gear

Tightening torque: N·m (kgf-m, ft-lb)

(9)

Pilot bearing

(21)

Spring pin

T1:

25 (2.5, 18.4)

(10)

Front oil seal

(22)

Differential case

T2:

50 (5.1, 36.9)

(11)

Companion flange

(23)

Pinion mate shaft

T3:

Rear Differential (VA-type) > ASSEMBLY

(12)

Self-locking nut

(24)

Air breather cap

T4:

191 (19.5, 140.9)

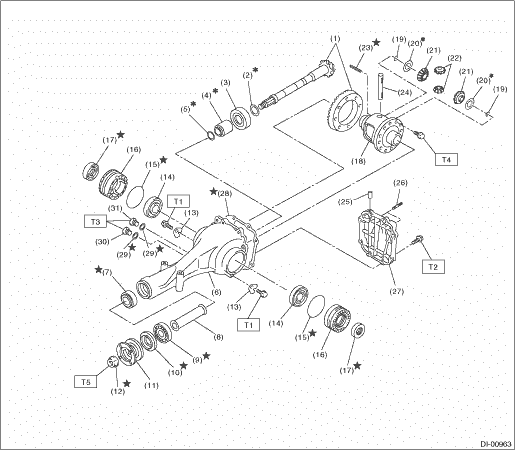

3. REAR DIFFERENTIAL (VA2-TYPE)

(1)

Hypoid driven gear and drive pinion set

(14)

Side bearing

(27)

Rear cover

(2)

Pinion height adjusting washer

(15)

O-ring

(28)

Gasket

(3)

Rear bearing

(16)

Side retainer

(29)

Gasket

(4)

Preload adjusting spacer

(17)

Side oil seal

(30)

Filler plug

(5)

Preload adjusting washer

(18)

Differential case

(31)

Drain plug

(6)

Differential carrier

(19)

Circlip

(7)

Front bearing

(20)

Side gear thrust washer

Tightening torque: N·m (kgf-m, ft-lb)

(8)

Spacer

(21)

Side gear

T1:

25 (2.5, 18.4)

(9)

Pilot bearing

(22)

Pinion mate gear

T2:

34 (3.5, 25.1)

(10)

Front oil seal

(23)

Spring pin

T3:

50 (5.1, 36.9)

(11)

Companion flange

(24)

Pinion mate shaft

T4:

Rear Differential (VA-type) > ASSEMBLY

(12)

Self-locking nut

(25)

Air breather cap

T5:

191 (19.5, 140.9)

(13)

Lock plate

(26)

Stud bolt

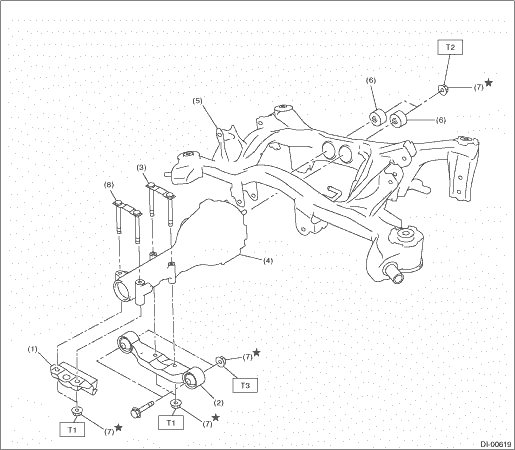

4. REAR DIFFERENTIAL MOUNTING SYSTEM

(1)

Mass damper (2.5 L OUTBACK model)

(5)

Sub frame

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Rear differential front member

(6)

Rear differential mount bushing

T1:

50 (5.1, 36.9)

(3)

Rear differential member plate

(7)

Self-locking nut

T2:

70 (7.1, 51.6)

(4)

Rear differential ASSY

(8)

Rear differential member plate (2.5 L OUTBACK model)

T3:

110 (11.2, 81.1)

Preparation tool
1. SPECIAL TOOLILLUSTRATIONTOOL NUMBERDESCRIPTIONREMARKS398477701HANDLE• Used for installing the rear bearing race.• Used for installing the front bearing race. (T-type and VA1-type)398477 ...
