Subaru Legacy Service Manual: Component

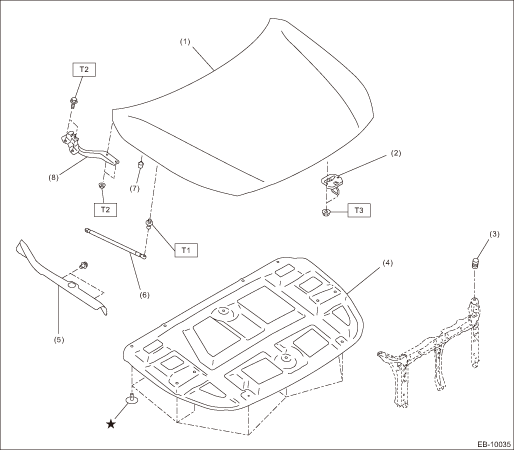

1. FRONT HOOD

(1)

Hood COMPL - front

(5)

Cover - front fender UPR

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Striker - front hood

(6)

Stay ASSY - front hood

T1:

20 (2.0, 14.8)

(3)

Buffer - front hood

(7)

Stopper - front hood

T2:

25 (2.5, 18.4)

(4)

Insulator - front hood

(8)

Hinge COMPL - front hood

T3:

33 (3.4, 24.3)

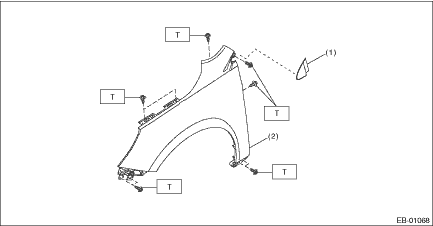

2. FRONT FENDER

(1)

Cover - A pillar ASSY

(2)

Fender COMPL - front

Tightening torque: N·m (kgf-m, ft-lb)

T:

7.5 (0.8, 5.5)

3. FRONT DOOR

(1)

Molding - door sash front

(8)

Sealing cover - front door

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Weather strip outer - front door

(9)

Checker ASSY - front door

T1:

7.5 (0.8, 5.5)

(3)

Panel ASSY - front door

(10)

Grommet - lower

T2:

25 (2.5, 18.4)

(4)

Cover B pillar - front door INN

(11)

Lower hinge - front door

T3:

30 (3.1, 22.1)

(5)

Plate - door

(12)

Upper hinge - front door

T4:

33 (3.4, 24.3)

(6)

Stopper - rubber

(13)

Grommet - upper

(7)

Front door inner pad

(14)

Cover sash - inner front

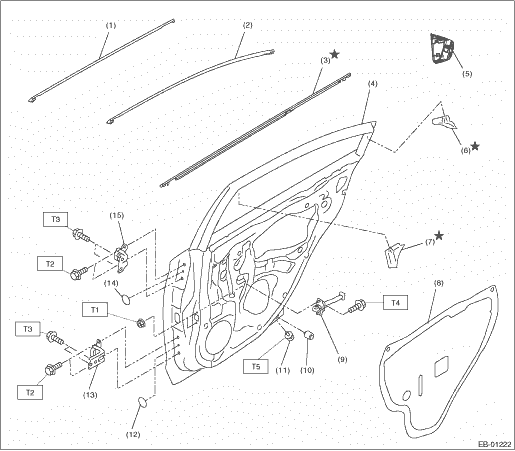

4. REAR DOOR

(1)

Molding - door sash rear (OUTBACK model)

(9)

Checker ASSY - rear door

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Molding - door sash rear (sedan model)

(10)

Stopper - rubber

T1:

7.5 (0.8, 5.5)

(3)

Weather strip outer - rear door

(11)

Catcher - rear door

T2:

25 (2.5, 18.4)

(4)

Panel ASSY - rear door

(12)

Grommet - lower

T3:

30 (3.1, 22.1)

(5)

Cover - C pillar ASSY (sedan model)

(13)

Lower hinge - rear door

T4:

33 (3.4, 24.3)

(6)

Cover C pillar - rear door INN

(14)

Grommet - upper

T5:

38 (3.9, 28.0)

(7)

Cover B pillar - rear door INN

(15)

Upper hinge - rear door

(8)

Sealing cover - rear door

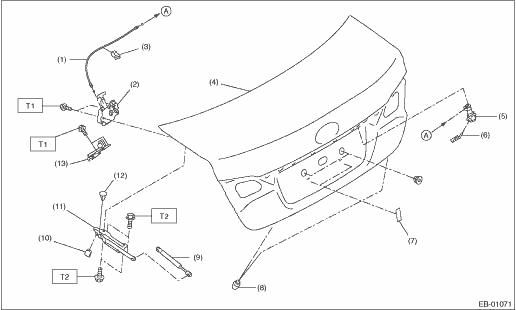

5. TRUNK LID PANEL

(1)

Cable ASSY - trunk lid

(7)

Cushion - license

(13)

Striker - trunk lid

(2)

Lock ASSY - trunk lid

(8)

Stopper - trunk lid LWR

(3)

Clip

(9)

Stay ASSY - trunk lid

Tightening torque: N·m (kgf-m, ft-lb)

(4)

Trunk lid COMPL

(10)

Stopper - hinge

T1:

7.5 (0.8, 5.5)

(5)

Key lock - trunk lid

(11)

Hinge ASSY - trunk lid

T2:

25 (2.5, 18.4)

(6)

Clamp - key trunk lid

(12)

Clip

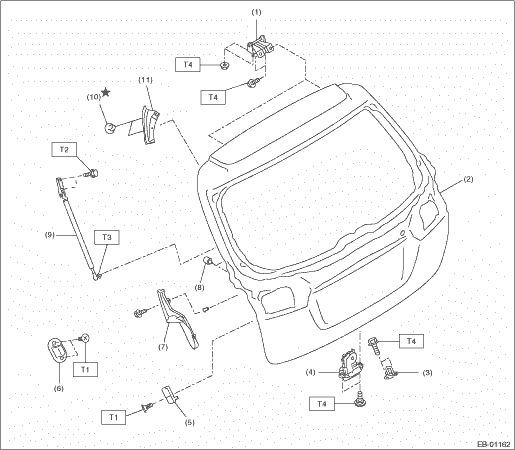

6. REAR GATE

NOTE:

For the components of power rear gate, refer to the power rear gate system. General Description > COMPONENT

(1)

Hinge - rear gate

(7)

Cover - rear gate

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Panel - rear gate

(8)

Stopper rubber

T1:

7.5 (0.8, 5.5)

(3)

Striker - rear gate

(9)

Stay ASSY - rear gate

T2:

16 (1.6, 11.8)

(4)

Latch & actuator - rear gate

(10)

Clip

T3:

20 (2.0, 14.8)

(5)

Buffer - rear gate (panel - rear gate side)

(11)

Drip - rear gate

T4:

25 (2.5, 18.4)

(6)

Buffer - rear gate (body side)

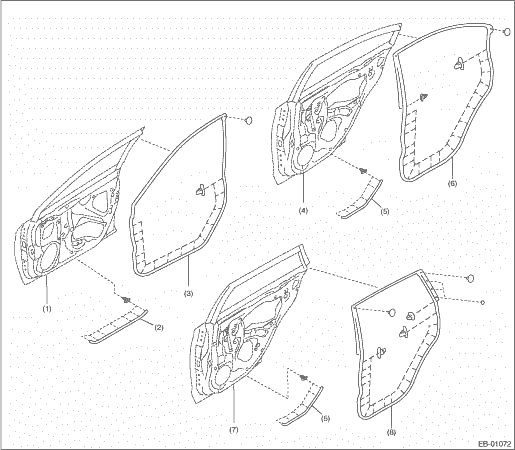

7. WEATHER STRIP

(1)

Panel ASSY - front door

(4)

Panel ASSY - rear door (sedan model)

(7)

Panel ASSY - rear door (OUTBACK model)

(2)

Weather strip - front door LWR

(5)

Weather strip - rear door LWR

(8)

Weather strip - rear door (OUTBACK model)

(3)

Weather strip - front door

(6)

Weather strip - rear door (sedan model)

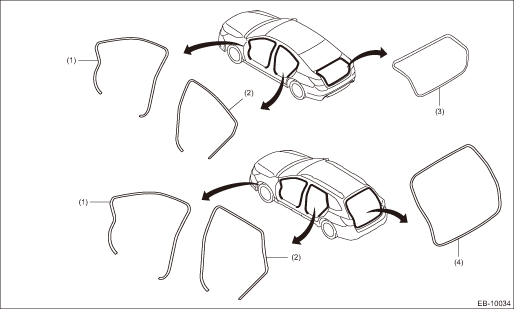

(1)

Weather strip - body side flange front

(3)

Weather strip - trunk lid (sedan model)

(4)

Weather strip - rear gate (OUTBACK model)

(2)

Weather strip - body side flange rear

Caution
Exterior body panels are heavy. When removing or installing, do not drop and damage the panels. Do not damage the panel painting surface. ...
