Subaru Legacy Service Manual: Component

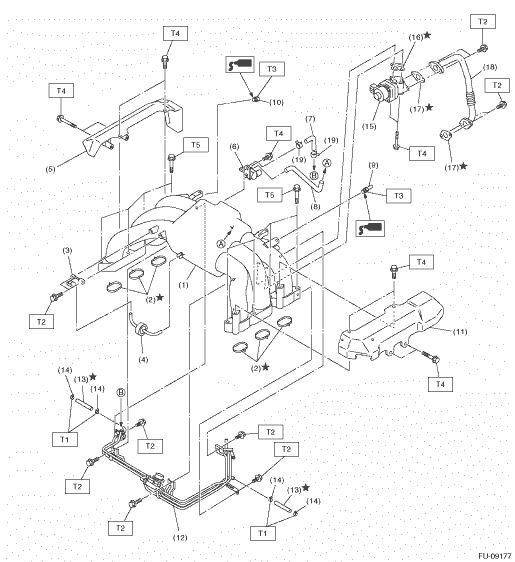

1. INTAKE MANIFOLD

(1)

Intake manifold

(10)

Plug

(19)

Clip

(2)

Gasket

(11)

Fuel pipe protector LH

(3)

Manifold absolute pressure sensor

(12)

Fuel pipe ASSY

Tightening torque: N·m (kgf-m, ft-lb)

(4)

Filter

(13)

Fuel hose

T1:

1.25 (0.1, 0.9)

(5)

Fuel pipe protector RH

(14)

Clamp

T2:

6.4 (0.7, 4.7)

(6)

Purge control solenoid valve

(15)

EGR valve

T3:

17 (1.7, 12.5)

(7)

Hose

(16)

Gasket

T4:

19 (1.9, 14.0)

(8)

Hose

(17)

Gasket

T5:

25 (2.5, 18.4)

(9)

Nipple

(18)

EGR pipe

2. FUEL INJECTOR

(1)

Fuel injector pipe LH

(8)

Clamp

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Fuel injector pipe RH

(9)

Fuel hose

T1:

1.25 (0.1, 0.9)

(3)

O-ring

(10)

Cylinder head LH

T2:

6.4 (0.7, 4.7)

(4)

Rubber

(11)

Cylinder head RH

T3:

19 (1.9, 14.0)

(5)

Fuel injector

(12)

Intake manifold

T4:

21.6 (2.2, 15.9)

(6)

Seal ring

(13)

Gasket

(7)

Fuel pipe ASSY

(14)

Pulsation damper

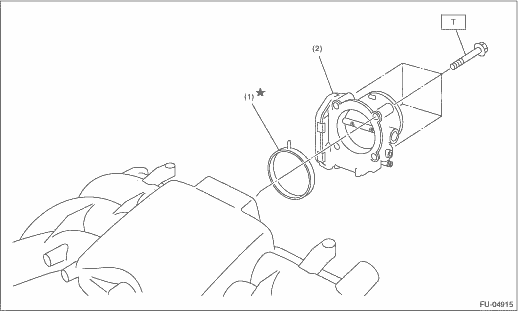

3. AIR INTAKE SYSTEM

(1)

Gasket

(2)

Throttle body

Tightening torque: N·m (kgf-m, ft-lb)

T:

8 (0.8, 5.9)

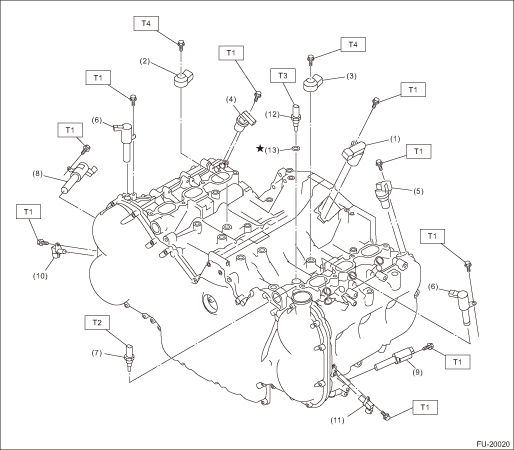

4. SENSOR

(1)

Crankshaft position sensor

(8)

Exhaust oil flow control solenoid valve RH

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Knock sensor RH

(9)

Exhaust oil flow control solenoid valve LH

T1:

6.4 (0.7, 4.7)

(3)

Knock sensor LH

(10)

Exhaust camshaft position sensor RH

T2:

18 (1.8, 13.3)

(4)

Intake camshaft position sensor RH

(11)

Exhaust camshaft position sensor LH

T3:

22 (2.2, 16.2)

(5)

Intake camshaft position sensor LH

(12)

Engine coolant temperature sensor

T4:

25 (2.5, 18.4)

(6)

Intake oil flow control solenoid valve

(13)

Gasket

(7)

Oil temperature sensor

5. ENGINE HARNESS

Engine harness assembly diagram 1

(A)

Cylinder block upper face

(B)

Intake manifold back surface

(1)

Crankshaft position sensor connector

(10)

Oil temperature sensor connector

(19)

Engine harness connector (10P)

(2)

Engine ground

(11)

Engine coolant temperature sensor connector

(20)

Throttle position sensor connector

(3)

Intake camshaft position sensor LH connector

(12)

#1 injector connector

(21)

Engine harness connector (16P)

(4)

#6 injector connector

(13)

Intake oil flow control solenoid valve RH connector

(22)

Throttle position sensor connector (to intake manifold)

(5)

Engine harness connector (12P)

(14)

#3 injector connector

(23)

Upper/lower connection connector (to intake manifold)

(6)

#4 injector connector

(15)

#5 injector connector

(24)

Purge control solenoid valve connector

(7)

Knock sensor LH connector

(16)

Knock sensor RH connector

(25)

Manifold absolute pressure sensor connector

(8)

#2 injector connector

(17)

Intake camshaft position sensor RH connector

(26)

EGR valve connector

(9)

Intake oil flow control solenoid valve LH connector

(18)

Engine harness connector (65P)

*1: Install with the engine ground terminal facing the rear side of vehicle.

*2: Attach the engine harness fixing clip to the main fuse box.

*3: Attach the engine harness fixing clip to the fuel pipe stay.

*4: Route from under the fuel pipe protector LH.

*5: Attach the engine harness fixing clip to the fuel pipe stay.

*6: Attach the engine harness fixing clip to the fixing boss on the cylinder block.

*7: Pass through over the upper side of the heater pipe stay.

*8: Install to the engine hanger stay.

*9: Install the engine harness fixing stay.

*10: Pass along outside of the fuel pipe.

*11: Attach the engine harness fixing clip to the fixing stay on the intake manifold.

Engine harness assembly diagram 2

(A)

Right side of the engine

(B)

Left side of the engine

(1)

#6 ignition coil connector

(5)

Exhaust camshaft position sensor LH connector

(9)

Exhaust oil flow control valve solenoid RH connector

(2)

#4 ignition coil connector

(6)

#1 ignition coil connector

(10)

#3 ignition coil connector

(3)

Exhaust oil flow control valve solenoid LH connector

(7)

Exhaust camshaft position sensor RH connector

(11)

#5 ignition coil connector

(4)

#2 ignition coil connector

(8)

Oil pressure switch connector

*1: Align the engine harness stay end with the end of engine harness identification tape.

*2: Attach the engine harness fixing clip to the fixing boss on the rocker cover.

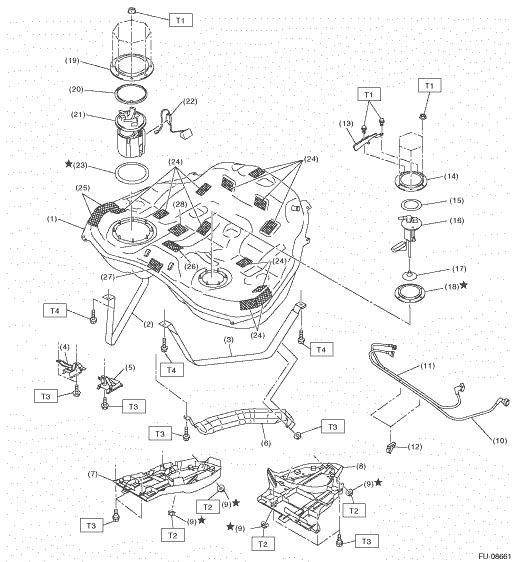

6. FUEL TANK

(1)

Fuel tank

(13)

Fuel sub level sensor protector

(24)

Cushion

(2)

Fuel tank band RH

(14)

Fuel sub level sensor upper plate

(25)

Cushion

(3)

Fuel tank band LH

(15)

Fuel sub level sensor upper plate cushion

(26)

Cushion

(4)

Stopper RH

(16)

Fuel sub level sensor

(27)

Cushion

(5)

Stopper LH

(17)

Fuel sub level sensor filter

(28)

Cushion

(6)

Heat shield cover

(18)

Fuel sub level sensor gasket

(7)

Fuel tank protector RH

(19)

Fuel pump upper plate

Tightening torque: N·m (kgf-m, ft-lb)

(8)

Fuel tank protector LH

(20)

Fuel upper plate cushion

T1:

4.4 (0.4, 3.2)

(9)

Self-locking nut

(21)

Fuel pump ASSY

T2:

9 (0.9, 6.6)

(10)

Fuel delivery tube

(22)

Fuel level sensor

T3:

18 (1.8, 13.3)

(11)

Fuel delivery sub tube

(23)

Fuel pump gasket

T4:

33 (3.4, 24.3)

(12)

Tube clamp

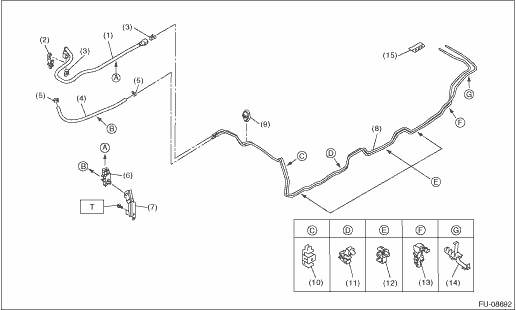

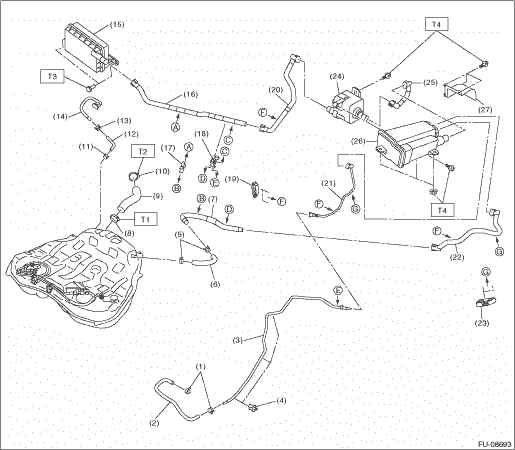

7. FUEL LINE

Fuel line 1

(1)

Fuel delivery tube

(7)

Tube clamp bracket

(13)

Pipe clamp

(2)

Tube clamp

(8)

Fuel pipe ASSY

(14)

Pipe clamp

(3)

Retainer

(9)

Fuel pipe front grommet

(15)

Fuel pipe rear grommet

(4)

Evaporation hose

(10)

Pipe clamp

(5)

Clip

(11)

Pipe clamp

Tightening torque: N·m (kgf-m, ft-lb)

(6)

Tube clamp

(12)

Pipe clamp

T:

7.5 (0.8, 5.5)

Fuel line 2

(1)

Clip

(12)

Circulate hose

(23)

Tube clamp

(2)

Purge hose

(13)

Clip

(24)

Leak check valve ASSY

(3)

Purge pipe

(14)

Circulate tube

(25)

Drain tube

(4)

Pipe clamp

(15)

Drain filter

(26)

Canister

(5)

Clip

(16)

Drain tube

(27)

Canister protector

(6)

Air vent hose

(17)

Tube clamp

(7)

Air vent tube

(18)

Tube clamp

Tightening torque: N·m (kgf-m, ft-lb)

(8)

Clamp

(19)

Tube clamp

T1:

2 (0.2, 1.5)

(9)

Fuel filler hose

(20)

Drain tube

T2:

2.5 (0.3, 1.8)

(10)

Clamp

(21)

Purge tube

T3:

7.5 (0.8, 5.5)

(11)

Clip

(22)

Vent tube

T4:

8 (0.8, 5.9)

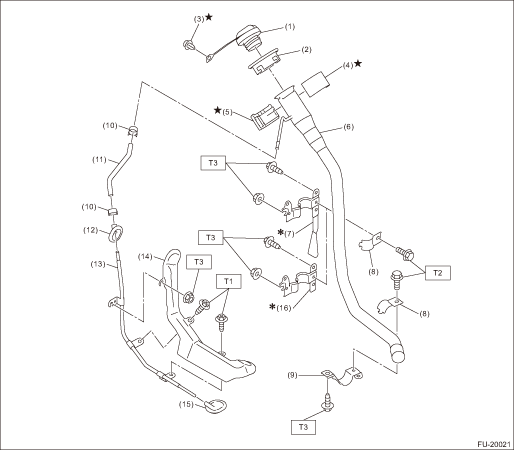

8. FUEL FILLER PIPE

(1)

Fuel filler cap

(8)

Fuel filler pipe bracket B

(15)

Grommet

(2)

Fuel filler pipe protector

(9)

Fuel filler pipe bracket C

(16)

Fuel filler pipe bracket A (without protector)

(3)

Clip

(10)

Clip

(4)

Neck holder A

(11)

Evaporation hose

Tightening torque: N·m (kgf-m, ft-lb)

(5)

Neck holder B

(12)

Grommet

T1:

1 (0.1, 0.7)

(6)

Fuel filler pipe

(13)

Evaporation pipe

T2:

7.35 (0.7, 5.4)

(7)

Fuel filler pipe bracket A (with protector)

(14)

Evaporation pipe protector

T3:

7.5 (0.8, 5.5)

*For the fuel filler pipe bracket A, either one with the protector or without the protector is installed depending on the specification.

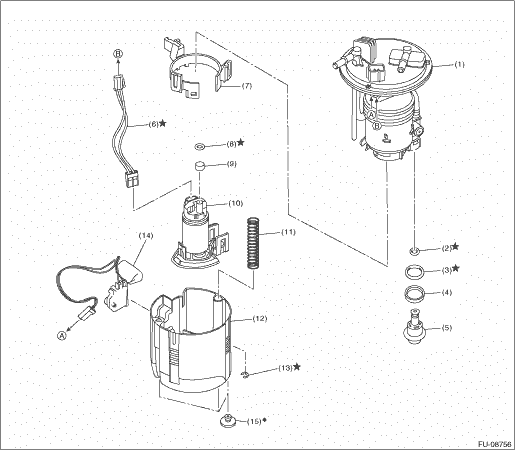

9. FUEL PUMP

(1)

Fuel filter ASSY

(6)

Connector cable

(11)

Spring

(2)

O-ring

(7)

Fuel pump holder

(12)

Fuel chamber ASSY

(3)

O-ring

(8)

O-ring

(13)

Clip

(4)

Back-up ring

(9)

Spacer

(14)

Fuel level sensor

(5)

Pressure regulator

(10)

Fuel pump

(15)

Cushion

* When removing the cushion from the fuel chamber assembly, replace it with a new part.

Preparation tool
1. SPECIAL TOOLILLUSTRATIONTOOL NUMBERDESCRIPTIONREMARKS18471AA000FUEL PIPE ADAPTERUsed for draining fuel.42099AE000QUICK CONNECTOR RELEASEUsed for removing the quick connector of the fuel delivery tu ...
