Subaru Legacy BN/BS (2015-2019) Service Manual: Component

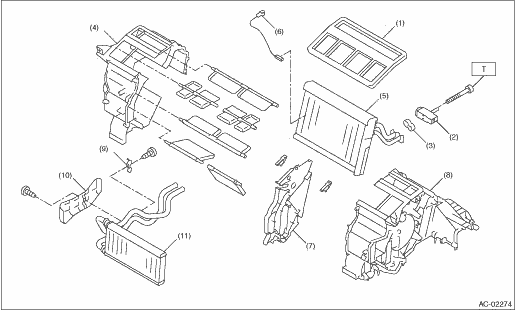

1. HEATER COOLING UNIT

(1)

Packing - heater unit

(6)

Thermostat - cooling

(11)

Heater core

(2)

Expansion valve - cooling

(7)

Plate

(3)

Packing

(8)

Case - heater unit RH

Tightening torque: N·m (kgf-m, ft-lb)

(4)

Case - heater unit LH

(9)

Clamp

T:

3.5 (0.4, 2.6)

(5)

Evaporator ASSY - cooling

(10)

Cover

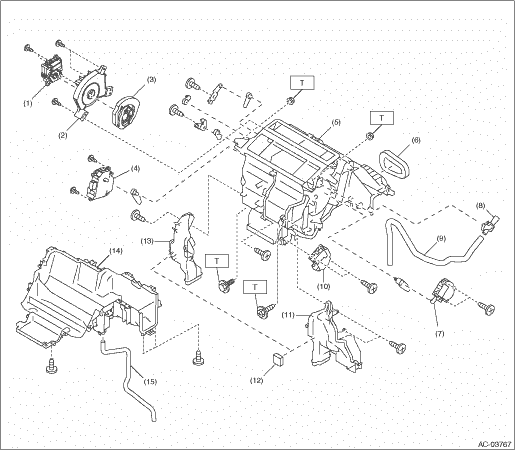

(1)

Motor - actuator mode

(8)

Aspirator

(15)

Hose - heater drain

(2)

Cover - actuator

(9)

Aspirator hose

(3)

Link plate

(10)

Motor ASSY - rear heater

Tightening torque: N·m (kgf-m, ft-lb)

(4)

Motor - actuator mix LH

(11)

Duct - foot assist

T:

7.5 (0.8, 5.5)

(5)

Heater cooling unit

(12)

Packing

(6)

Packing

(13)

Duct - foot driver

(7)

Motor - actuator mix RH

(14)

Case - heater lower

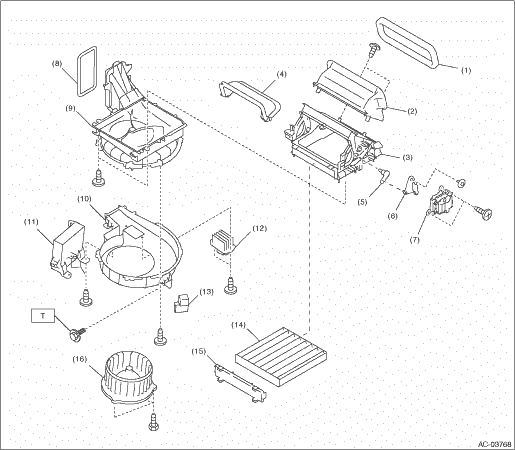

2. BLOWER MOTOR UNIT

(1)

Packing

(8)

Packing - blower

(14)

Filter

(2)

Air duct cover UPR

(9)

Case upper - blower

(15)

Filter cover

(3)

Air duct cover LWR

(10)

Case lower - blower

(16)

Blower motor ASSY

(4)

Shutter - heater

(11)

Control module

(5)

Lever

(12)

Power transistor (auto A/C model) or resistor (manual A/C model)

Tightening torque: N·m (kgf-m, ft-lb)

(6)

Link plate

(13)

Blower motor relay

T:

7.5 (0.8, 5.5)

(7)

Intake door actuator

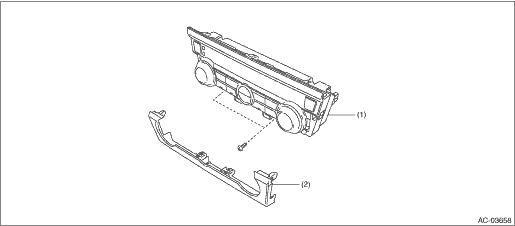

3. CONTROL PANEL

(1)

Heater control ASSY

(2)

Control module cover

4. AIR CONDITIONING UNIT

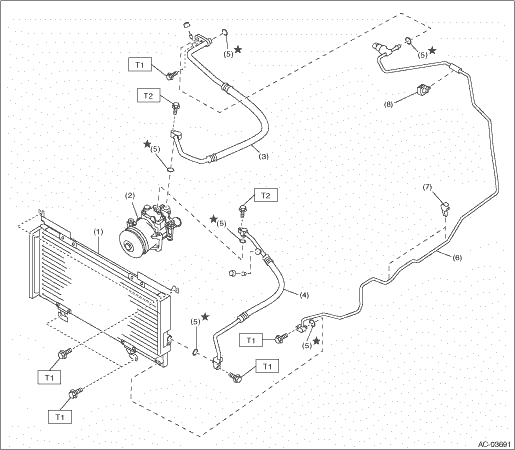

H4 model

(1)

Condenser ASSY - air conditioner

(5)

Seal O-ring

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Compressor ASSY

(6)

Pipe - evaporator cooling

T1:

7.5 (0.8, 5.5)

(3)

Hose - pressure suction

(7)

Clip - pipe

T2:

10 (1, 7.4)

(4)

Hose - pressure discharge

(8)

Clip

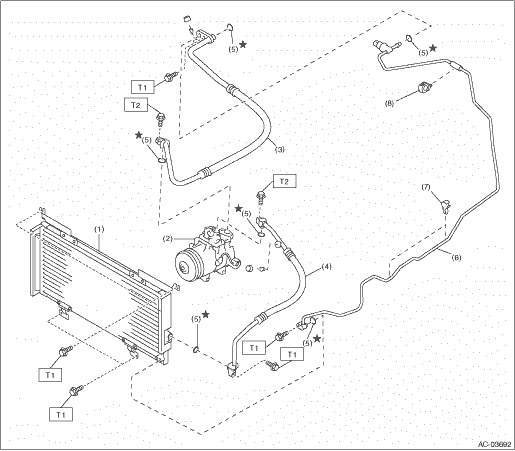

H6 model

(1)

Condenser ASSY - air conditioner

(5)

Seal O-ring

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Compressor ASSY

(6)

Pipe - evaporator cooling

T1:

7.5 (0.8, 5.5)

(3)

Hose - pressure suction

(7)

Clip - pipe

T2:

10 (1, 7.4)

(4)

Hose - pressure discharge

(8)

Clip

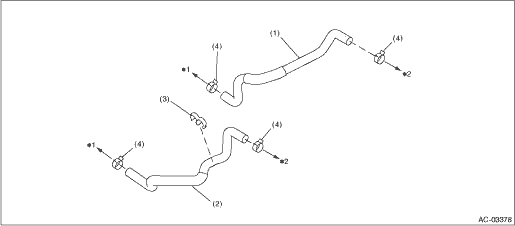

5. HEATER HOSE

(1)

Hose - heater outlet

(3)

Clip

(4)

Clamp

(2)

Hose - heater inlet

*1: Engine side

*2: Heater core side

6. COMPRESSOR

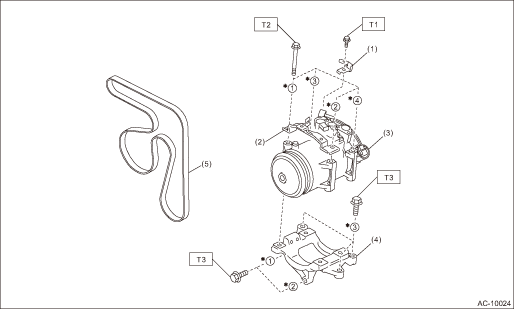

H4 model

(1)

Bracket - connector

(4)

Bracket - air conditioner

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Bracket - V-belt cover

(5)

V-belt (6 PK)

T1:

6.4 (0.7, 4.7)

(3)

Compressor ASSY

T2:

25 (2.5, 18.4)

T3:

36 (3.7, 26.6)

* Tighten the compressor assembly and the bracket - air conditioner in the numerical order as shown in the figure.

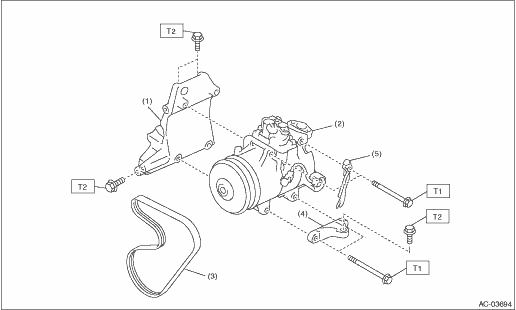

H6 model

(1)

Bracket ASSY - compressor

(4)

Bracket - air conditioner

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Compressor ASSY

(5)

Bracket - connector

T1:

26.5 (2.7, 19.5)

(3)

V-belt (6 PK)

T2:

36 (3.7, 26.6)

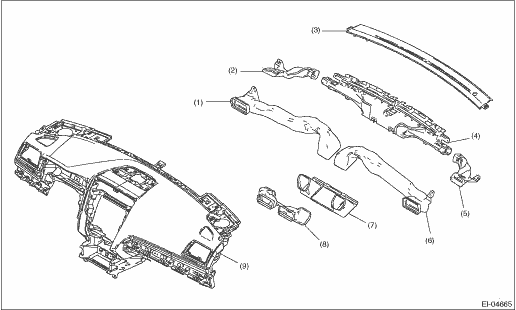

7. HEATER DUCT

(1)

Duct - side ventilation LH

(4)

Nozzle - front defroster

(7)

Duct - center vent

(2)

Duct - side defroster LH

(5)

Duct - side defroster RH

(8)

Duct - center vent front

(3)

Grille - front defroster

(6)

Duct - side ventilation RH

(9)

Panel COMPL - instrument

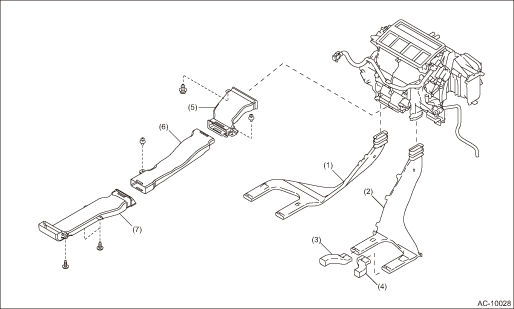

(1)

Duct - rear heater LH

(4)

Duct - extension RH

(6)

Duct - console center

(2)

Duct - rear heater RH

(5)

Duct - console front

(7)

Duct - console rear

(3)

Duct - extension LH

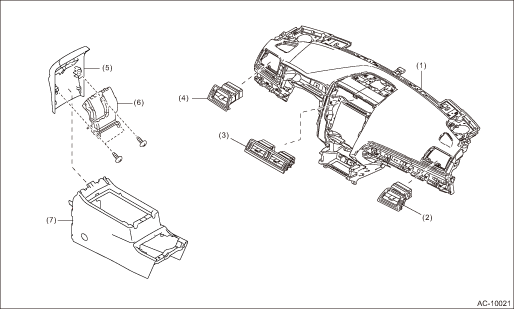

8. AIR VENT GRILLE

(1)

Panel COMPL - instrument

(4)

Grille ASSY - ventilation LH

(6)

Grille ASSY - rear heater

(2)

Grille ASSY - ventilation RH

(5)

End cover - console box

(7)

Console box outer

(3)

Grille ASSY - CTR ventilation

Location
Refer to “Electrical Component Location” for “HVAC SYSTEM (AUTO A/C) (DIAGNOSTICS)” section. Electrical Component Location ...
