Subaru Legacy BN/BS (2015-2019) Service Manual: Component

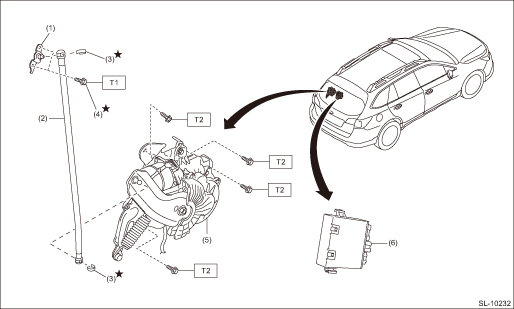

1. UNIT AND REAR GATE

(1)

Bracket rod - power rear gate

(4)

Flange bolt

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Rod - power rear gate

(5)

Power rear gate drive unit (PRG D/U)

T1:

16 (1.6, 11.4)

(3)

Stop ring

(6)

Power rear gate control module (PRG CM)

T2:

25 (2.5, 18.4)

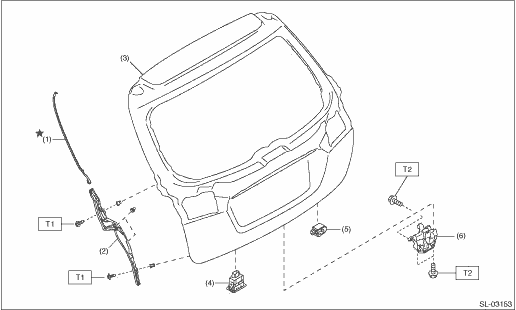

(1)

Power rear gate touch sensor UPR

(4)

Power rear gate inner switch

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Power rear gate touch sensor LWR

(5)

Power rear gate buzzer

T1:

1.5 (0.2, 1.1)

(3)

Panel - rear gate

(6)

Power rear gate auto closer

T2:

25 (2.5, 18.4)

Location
Refer to “LOCATION” in the “POWER REAR GATE SYSTEM (DIAGNOSTICS)” section. Electrical Component Location > LOCATION ...
