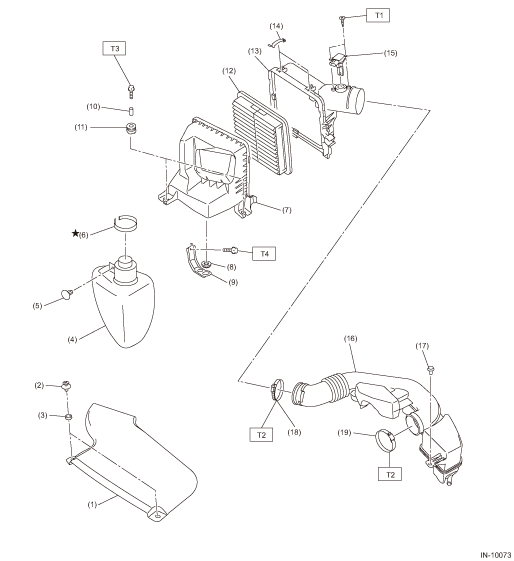

Subaru Legacy Service Manual: Component

(1)

Air intake duct

(10)

Spacer

(19)

Clamp

(2)

Clip

(11)

Cushion

(3)

Cushion

(12)

Air cleaner element

Tightening torque: N·m (kgf-m, ft-lb)

(4)

Resonator chamber

(13)

Air cleaner case (rear)

T1:

1 (0.1, 0.7)

(5)

Clip (model with clip)

(14)

Clip

T2:

3 (0.3, 2.2)

(6)

Cushion

(15)

Mass air flow and intake air temperature sensor

T3:

6 (0.6, 4.4)

(7)

Air cleaner case (front)

(16)

Air intake boot

T4:

7.5 (0.8, 5.5)

(8)

Cushion

(17)

Clip

(9)

Air cleaner case bracket

(18)

Clamp
