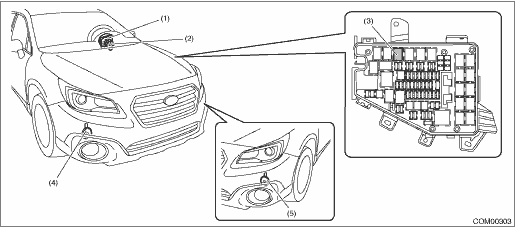

Subaru Legacy BN/BS (2015-2019) Service Manual: Component

(1)

Horn switch (driver’s airbag module ASSY)

(3)

Horn relay

(5)

Horn ASSY - Lo

(2)

Roll connector

(4)

Horn ASSY - Hi

Caution
• Before disconnecting connectors of sensors or units, be sure to disconnect the ground cable from battery.• When replacing the parts provided with memory functions such as audio, record t ...

Horn
...
