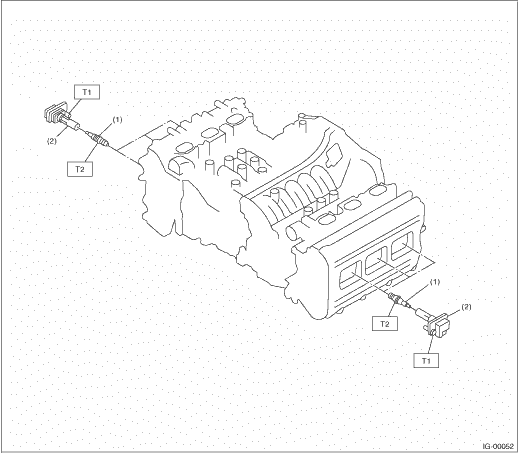

Subaru Legacy Service Manual: Component

(1)

Spark plug

(2)

Ignition coil

Tightening torque: N·m (kgf-m, ft-lb)

T1:

16 (1.6, 11.8)

T2:

21 (2.1, 15.5)

Caution
• Prior to starting work, pay special attention to the following:1. Always wear work clothes, a work cap, and protective shoes. Additionally, wear a helmet, protective goggles, etc. if necessary ...

Ignition coil
...

Other materials:

Preparation tool
1. SPECIAL TOOLILLUSTRATIONTOOL NUMBERDESCRIPTIONREMARKS — SUBARU SELECT MONITOR 4Used for setting of each function and troubleshooting for electrical system.NOTE:For detailed operation procedures of Subaru Select Monitor 4, refer to “Application help”.2. GENERAL TOOLTOOL NAMEREMARKSCi ...
