Subaru Legacy Service Manual: Disassembly

1. Flatten the tab of the lock nut.

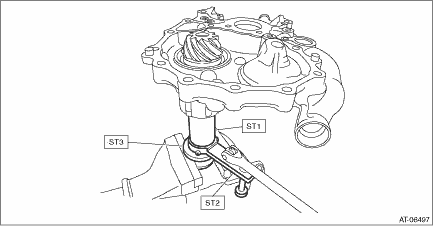

2. Using ST1, ST2 and ST3, fix at the spline portion of drive pinion shaft to remove the lock nut.

ST1 499787500ADAPTER
ST2 499787700WRENCH
ST3 498937110HOLDER

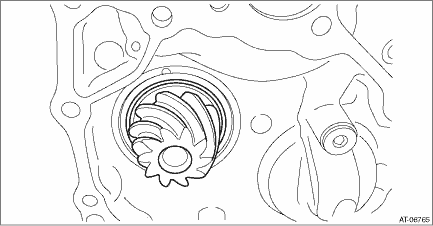

3. Remove the drive pinion shaft from the drive pinion retainer.

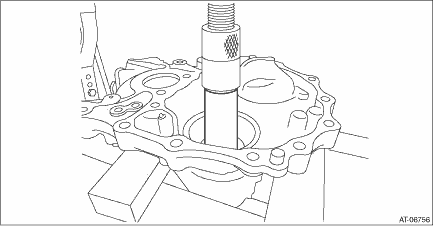

4. Using the round bar with diameter of 36 mm (1.42 in) or 37 mm (1.46 in), remove the bearing inner race and plug.

5. Remove the drive pinion washer.

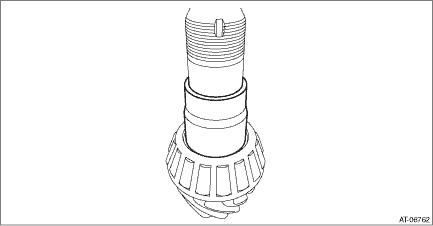

6. Remove the drive pinion spacer.

7. Remove the O-rings.

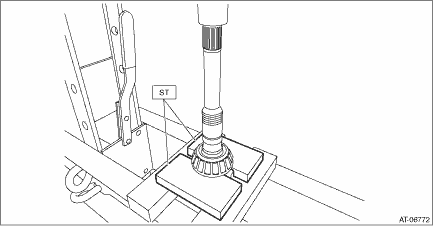

8. Remove the inner race and drive pinion shim from drive pinion shaft using ST.

ST 498515500REMOVER

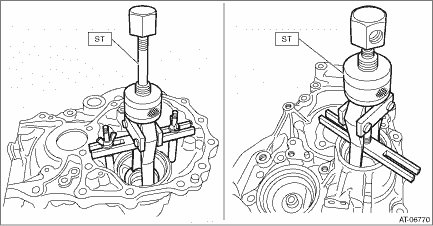

9. Using the ST, remove the outer race.

ST 398527700PULLER ASSY

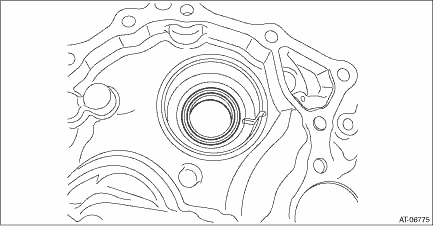

10. Remove the two oil seals using a screwdriver wrapped with cloth, etc.

CAUTION:

Do not damage the fitting surface of oil seal.

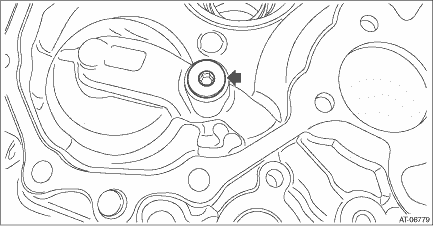

11. Remove the plug from drive pinion retainer.

Inspection
• Make sure that all component parts are free of scratches, holes and other faults.• Check the tooth contact. Drive Pinion Shaft Assembly > ADJUSTMENT• Apply CVTF to bearing and rot ...

Assembly
1. Install the plug to drive pinion retainer.NOTE:• Use new O-rings.• Apply CVTF to the O-rings.Tightening torque:22 N·m (2.2 kgf-m, 16.2 ft-lb)2. Using the ST, install the oil seal ...
