Subaru Legacy Service Manual: Disassembly

1. FORWARD CLUTCH ASSEMBLY

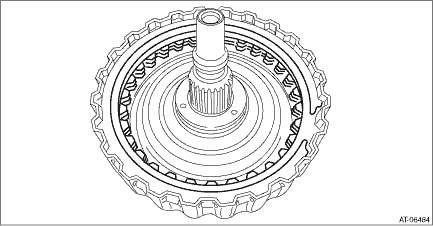

1. Remove the snap ring.

2. Remove the retaining plate, drive plate, driven plate and dish plate.

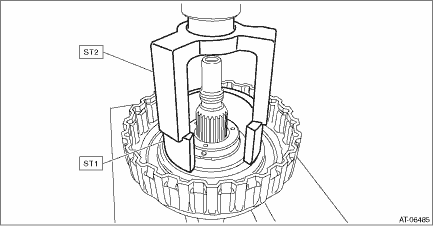

3. Compress the return spring using the ST to remove the snap ring.

ST1 18762AA010COMPRESSOR SPECIAL TOOL
ST2 398673600COMPRESSOR

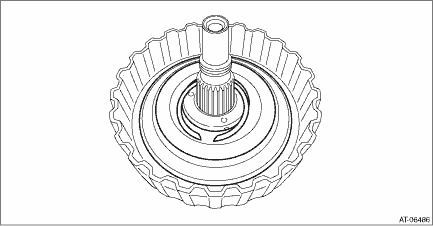

4. Remove the chamber COMPL and snap ring.

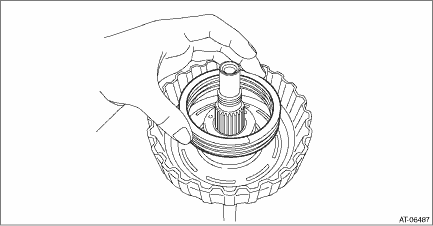

5. Remove the return spring.

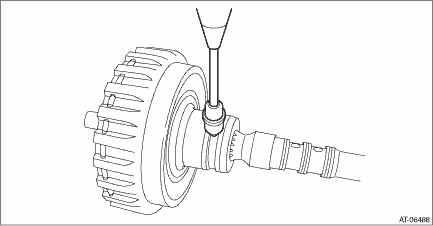

6. Remove the forward clutch piston by blowing compressed air intermittently from the forward clutch carrier hole.

2. PLANETARY CARRIER ASSEMBLY

NOTE:

Disassemble the balance oil guide only.

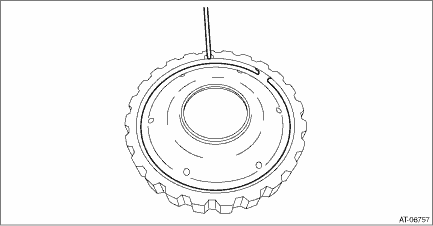

1. Remove the snap ring.

2. Remove the balance oil guide.

3. INTERNAL GEAR

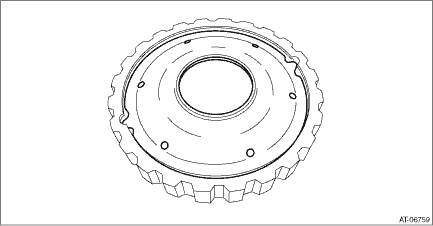

1. Remove the snap ring.

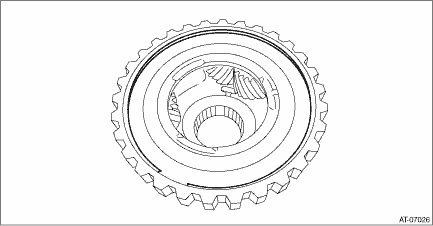

2. Remove the thrust gear plate.

Inspection
• Check the forward clutch drum, internal gear, sun gear and forward clutch piston lip for wear or damage.• Inspect the drive plate facing for wear and damage.• Check the driven plat ...

Assembly
1. FORWARD CLUTCH ASSEMBLY1. Install the forward clutch piston to forward clutch drum.NOTE:• Apply CVTF to the seal of forward clutch piston.• Insert it all the way to the end.2. Install t ...
