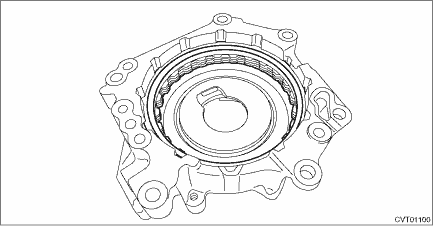

1. Remove the snap ring.

2. Remove the retaining plate, drive plate, driven plate and dish plate.

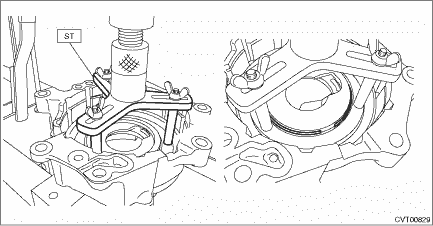

3. Compress the return spring using the ST to remove the snap ring.

ST 18762AA001COMPRESSOR SPECIAL TOOL

4. Using the ST, remove the snap ring and spring retainer.

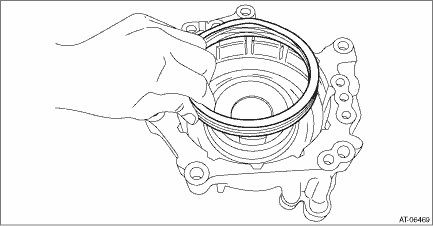

5. Remove the return spring.

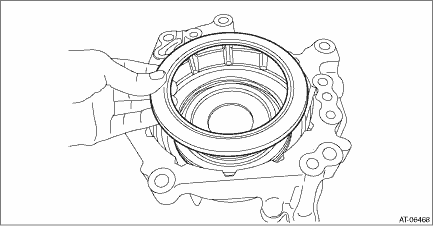

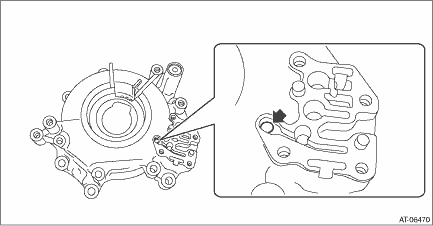

6. Remove the reverse brake piston by blowing compressed air intermittently from reverse brake housing hole.

Inspection
• Inspect the drive plate facing for wear and damage.• Check the driven plate for discoloration (burnt color).• Check for worn snap ring, fatigue or damaged return spring or deformed ...
