Subaru Legacy Service Manual: Disassembly

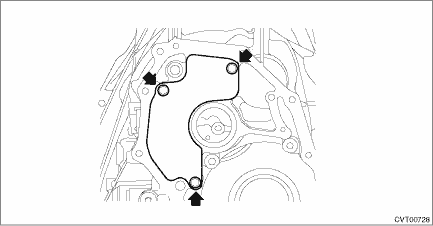

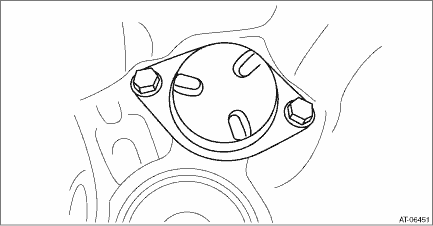

1. Remove the oil stopper plate.

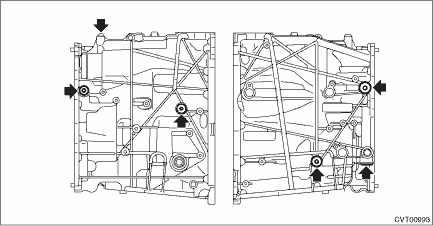

2. Remove all plugs from the transmission case.

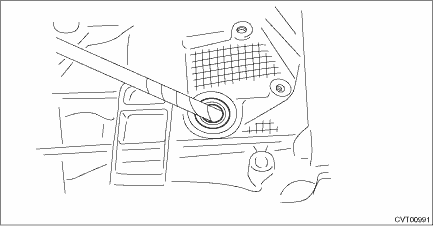

3. Remove the oil seal using a screwdriver wrapped with cloth etc.

4. Using the ST, remove the ball bearing of the secondary pulley.

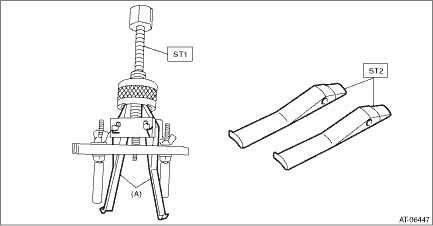

(1) Remove the claw of ST1, and attach the claw of ST2.

ST1 398527700PULLER ASSY
ST2 18760AA000CLAW

(A)

Claw

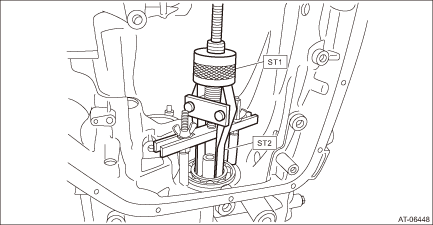

(2) Using the ST, remove the ball bearing of the secondary pulley.

ST1 398527700PULLER ASSY
ST2 18760AA000CLAW

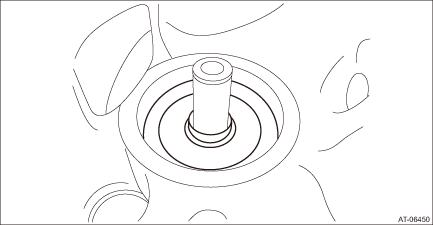

5. Remove the oil guide.

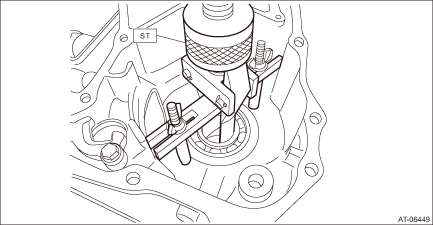

6. Remove the ball bearing from reduction driven gear using ST.

ST 398527700PULLER ASSY

7. Remove the CVTF filter cover and gasket.

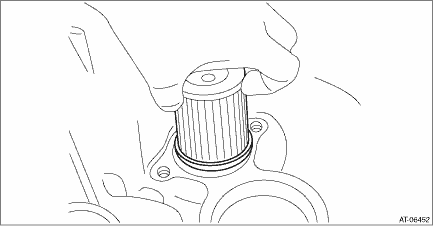

8. Remove the CVTF filter.

Inspection
• Check the transmission case for damage.• Check for leakage of CVTF from the connection between converter case and transmission case.• Check the bearing for smooth operation.• ...

Assembly
1. Face the O-ring side of the CVTF filter to the transmission case side, and install the CVTF filter.NOTE:Apply CVTF to the O-ring of CVTF filter.2. Install the CVTF filter cover and gasket.NOTE:Use ...
