Subaru Legacy Service Manual: Disassembly

1. DIFFERENTIAL CASE ASSEMBLY

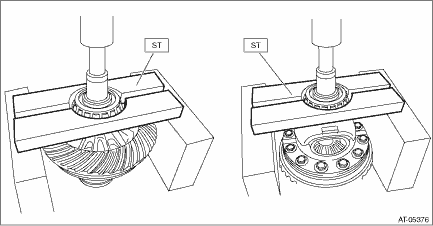

1. Remove the taper roller bearing using the ST.

ST 498077000REMOVER

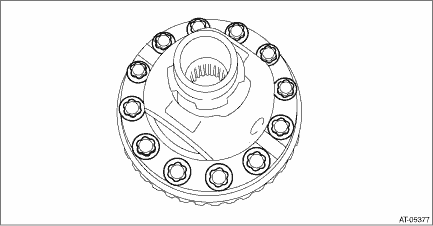

2. Remove the hypoid driven gear mounting bolt using the ST.

ST 18270KA020SOCKET (E20)

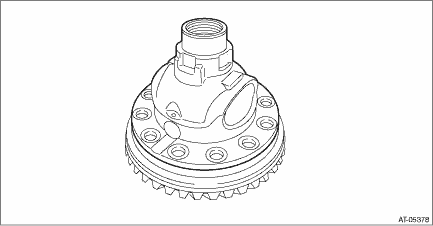

3. Remove the differential case (LH).

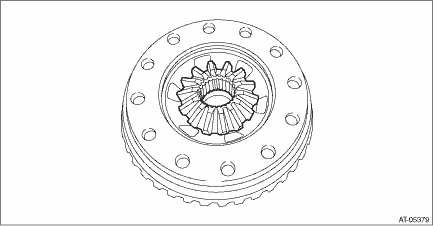

4. Remove the differential bevel gear and washer from differential case.

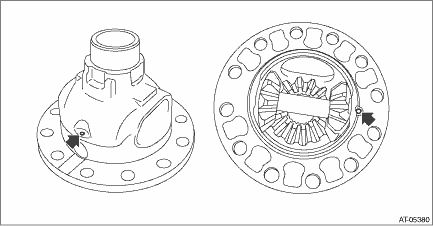

5. Remove the straight pin.

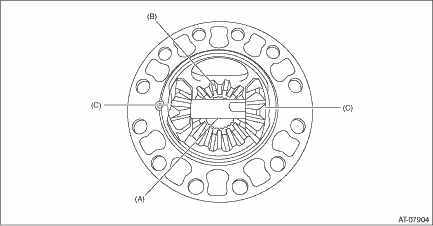

6. Remove the pinion shaft, then remove the differential bevel gear, washer and differential bevel pinion.

(A)

Pinion shaft

(B)

Differential bevel gear

(C)

Differential bevel pinion

2. SIDE RETAINER

NOTE:

After adjusting the drive pinion backlash and tooth contact, replace the oil seal and O-ring with new parts.

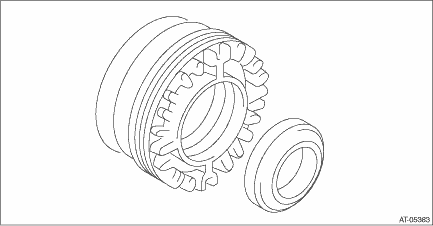

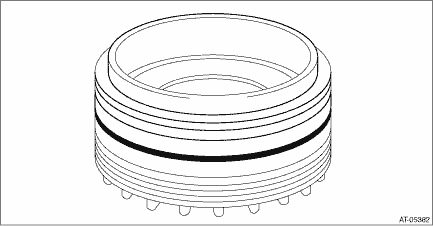

1. Remove the O-rings.

2. Remove the oil seal.

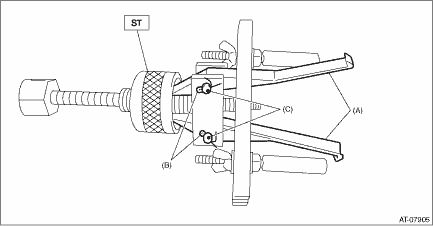

3. Remove the SPLIT PIN (ST), and then remove the claw.

ST 398527700PULLER ASSY

(A)

Claw

(B)

Split pin

(C)

Pin

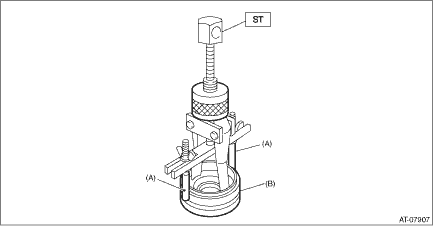

4. Attach two claws to the outer race, and set the ST to side retainer.

ST 398527700PULLER ASSY

(A)

Shaft

(B)

Claw

5. Restore the removed claws to original position, and install the pin and split pin.

6. Hold the shaft of ST to avoid removing from side retainer, and then remove the bearing outer race.

ST 398527700PULLER ASSY

NOTE:

Replace the bearing inner and outer races as a single unit.

(A)

Shaft

(B)

Side retainer

Inspection
• Check each component for scratches, damage or other faults.• Inspect the backlash of the pinion gear.Specification:0.13 — 0.18 mm (0.0051 — 0.0071 in)• Measure the hypoid gear ...

Assembly
1. DIFFERENTIAL CASE ASSEMBLY1. Install the washer and differential bevel gear into differential case (LH).2. Install the differential bevel gear pinions into differential case (LH) and install the pi ...
