Subaru Legacy Service Manual: Disassembly

1. RADIATOR MAIN FAN AND RADIATOR MAIN FAN MOTOR

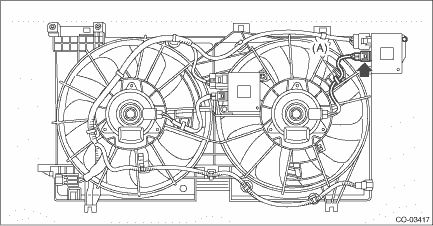

1. Disconnect the connector from the radiator fan control module (main), and remove the radiator main fan motor harness from the clip (A).

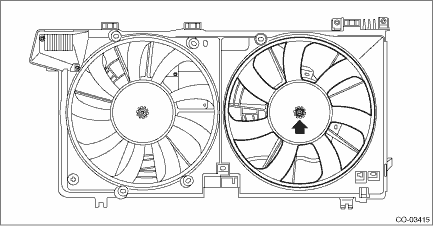

2. Remove the radiator main fan from the radiator main fan motor.

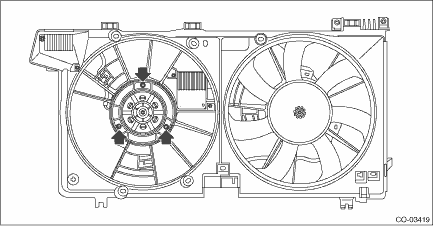

3. Remove the radiator main fan motor from the radiator fan shroud.

2. RADIATOR SUB FAN AND RADIATOR SUB FAN MOTOR

1. Disconnect the connector from the radiator fan control module (sub), and remove the radiator sub fan motor harness from the clip (A).

2. Remove the radiator sub fan from the radiator sub fan motor.

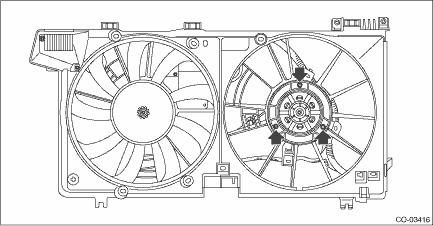

3. Remove the radiator sub fan motor from the radiator fan shroud.

3. RADIATOR FAN HARNESS

Remove the clip securing the radiator fan harness to the radiator fan shroud, and remove the radiator fan harness.

4. RADIATOR FAN SHROUD

1. Remove the radiator main fan and radiator main fan motor. Radiator Fan and Fan Motor Assembly > DISASSEMBLY

2. Remove the radiator sub fan and radiator sub fan motor. Radiator Fan and Fan Motor Assembly > DISASSEMBLY

3. Remove the radiator fan harness. Radiator Fan and Fan Motor Assembly > DISASSEMBLY

4. Remove the radiator fan control unit. Radiator Fan Control Unit > REMOVAL

Inspection
Check that the radiator fan, radiator fan harness, radiator fan shroud and radiator fan motor do not have deformation, cracks or damage. ...
