Subaru Legacy Service Manual: Disassembly

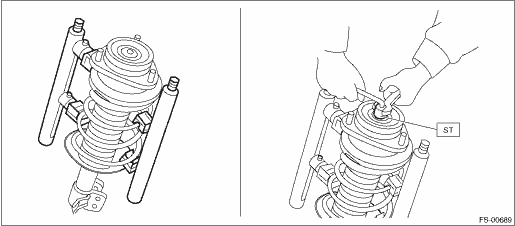

1. Using a coil spring compressor, compress the coil spring.

2. Using a hexagon wrench to prevent strut rod from turning, remove the self-locking nut with ST.

CAUTION:

When installing the coil spring compressor to the coil spring, follow the operation manual accompanied with the coil spring compressor during operation.

Preparation tool:

ST: STRUT MOUNT SOCKET (20399AG000)

NOTE:

The installing position of coil spring compressor varies depending on the coil spring shape and winding number.

3. Remove the strut mount - front, spacer - front strut, dust cover - front strut and spring seat - front strut UPR from the strut COMPL.

4. Gradually decrease the compression force of compressor, and remove the coil spring.

5. Remove the dust cover and helper.
