Subaru Legacy Service Manual: Disassembly

CAUTION:

Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.

1. HIGH BEAM BULB

1. Disconnect the connector.

2. Rotate in the direction of arrow shown in the figure to remove the high beam bulb.

2. LOW BEAM BULB (HALOGEN TYPE)

1. Disconnect the connector.

2. Rotate in the direction of arrow shown in the figure to remove the low beam bulb.

3. LOW BEAM BULB (HID TYPE)

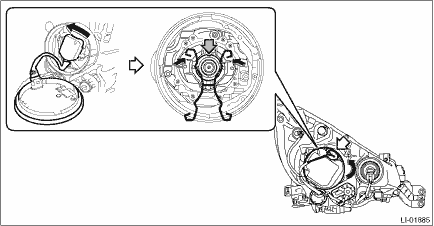

1. Remove the connector and rotate the ballast - headlight in the arrow direction shown in the figure.

2. Rotate the bulb socket in the arrow direction shown in the figure to remove the ballast - headlight.

3. Unlock the bulb spring, and remove the low beam bulb.

4. PARKING LIGHT BULB

NOTE:

Since the LED type is a non-disassembled part, it cannot be removed.

5. SIDE MARKER LIGHT BULB

Rotate the bulb socket in the direction of arrow shown in the figure to remove the side marker light bulb.

6. TURN SIGNAL LIGHT BULB

Rotate the bulb socket in the direction of arrow shown in the figure to remove the turn signal light bulb.

Installation
CAUTION:• Install the bumper face - front so that the front end of the under cover (b) comes inside the bumper face - front (a), and the front end of the mud guard (c) comes outside the bumper f ...

Assembly
CAUTION:Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.1. HIGH BEAM BULB1. Install the high beam bulb.2. Connect the connector.2. LOW BEAM BULB (HALOGEN TYPE ...
