Subaru Legacy Service Manual: Dtc b2350 rear radar communication error between master and slave

DTC DETECTING CONDITION:

Defective harness for CAN communication between radar sensor LH and radar sensor RH

Defective radar sensor

TROUBLE SYMPTOM:

All functions of BSD/RCTA stop.

Fail icon is displayed in the combination meter LCD display.

Failure-related notification is displayed for approx. two seconds on LCD display in the combination meter.

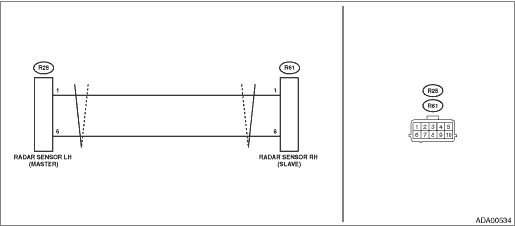

WIRING DIAGRAM:

NOTE:

For the coupling connector, refer to “WIRING SYSTEM”.

BSD/RCTA system Blind Spot Detection/Rear Cross Traffic Alert > WIRING DIAGRAM

STEPCHECKYESNO

1.CHECK DTC.

Read the DTC. Read Diagnostic Trouble Code (DTC) > OPERATION

Is DTC B2350 displayed- (Current malfunction)

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC B2350 REAR RADAR COMMUNICATION ERROR BETWEEN MASTER AND SLAVE

Even if DTC is displayed, the circuit has returned to a normal condition at this time. Reproduce the failure, and then perform the diagnosis again.

NOTE:

In this case, temporary poor contact of connector, temporary open or short circuit of harness may be the cause.

2.CHECK HARNESS (OPEN CIRCUIT).

1) Disconnect the radar sensor connectors LH and RH.

2) Using a tester, measure the resistance between radar sensor RH connector (harness side) and radar sensor LH connector (harness side).

Connector & terminal

(R25) No. 1 — (R61) No. 1:

(R25) No. 6 — (R61) No. 6:

Is the resistance less than 1 --

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC B2350 REAR RADAR COMMUNICATION ERROR BETWEEN MASTER AND SLAVE

Repair the open circuit of harness between radar sensor RH connector and radar sensor LH connector.

3.CHECK HARNESS (SHORT BETWEEN LINES, GROUND SHORT CIRCUIT).

Using a tester, measure the resistance between radar sensor LH connectors (harness side) and the resistance between radar sensor LH connector (harness side) and chassis ground.

Connector & terminal

(R25) No. 1 — (R25) No. 6:

(R25) No. 1 — Chassis ground:

(R25) No. 6 — Chassis ground:

Is the resistance 1 M- or more-

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC B2350 REAR RADAR COMMUNICATION ERROR BETWEEN MASTER AND SLAVE

Repair the short circuit of harness between radar sensor RH connector and radar sensor LH connector.

4.CHECK HARNESS (SHORT CIRCUIT TO POWER SUPPLY).

1) Turn the ignition switch to ON.

2) Using a tester, measure the voltage between radar sensor LH connector (harness side) and chassis ground.

Connector & terminal

(R25) No. 1 (+) — Chassis ground (−):

(R25) No. 6 (+) — Chassis ground (−):

Is the voltage less than 1 V-

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC B2350 REAR RADAR COMMUNICATION ERROR BETWEEN MASTER AND SLAVE

Repair the short to power supply in harness between radar sensor RH connector and radar sensor LH connector.

5.CHECK RADAR SENSOR. (INTERNAL IMPEDANCE).

Using a tester, measure the resistance between radar sensor LH connectors (module side) and the resistance between radar sensor RH connectors (module side).

Connector & terminal

(R25) No. 1 — (R25) No. 6:

(R61) No. 1 — (R61) No. 6:

Is the resistance approximately 120 --

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC B2350 REAR RADAR COMMUNICATION ERROR BETWEEN MASTER AND SLAVE

Replace the radar sensor RH or radar sensor LH. Radar Sensor

6.CHECK BSD/RCTA.

1) Restore the vehicle to its original state.

2) Perform the Clear Memory Mode. Clear Memory Mode

3) Perform the Inspection Mode. Inspection Mode

Is DTC B2350 displayed- (Current malfunction)

Replace the radar sensor on the side that displayed the DTC. Radar Sensor

Even if DTC is displayed, the circuit has returned to a normal condition at this time. Reproduce the failure, and then perform the diagnosis again.

NOTE:

In this case, temporary poor contact of connector, temporary open or short circuit of harness may be the cause.
