Subaru Legacy Service Manual: Dtc p2138 throttle/pedal position sensor/switch "d"/"e" voltage correlation

Subaru Legacy Service Manual / Engine (diagnostics)(h6do) / Diagnostic procedure with diagnostic trouble code (dtc) / Dtc p2138 throttle/pedal position sensor/switch "d"/"e" voltage correlation

DTC DETECTING CONDITION:

Immediately at fault recognition

CAUTION:

After servicing or replacing faulty parts, perform Clear Memory Mode Clear Memory Mode > OPERATION, and Inspection Mode Inspection Mode > PROCEDURE.

TROUBLE SYMPTOM:

Improper idling

Poor driving performance

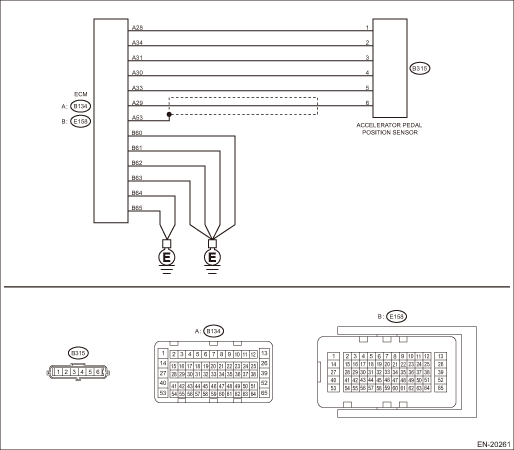

WIRING DIAGRAM:

Engine Electrical System ENGINE TYPE EZ (WITHOUT PUSH BUTTON START) Engine Electrical System > WIRING DIAGRAM

Engine Electrical System ENGINE TYPE EZ (WITH PUSH BUTTON START) Engine Electrical System > WIRING DIAGRAM

STEPCHECKYESNO

1.CHECK ACCELERATOR PEDAL POSITION SENSOR OUTPUT.

1) Turn the ignition switch to ON.

2) Measure the voltage between ECM connector and chassis ground.

Connector & terminal

Main accelerator pedal position sensor signal

(B134) No. 29 (+) — Chassis ground (−):

Sub accelerator pedal position sensor signal

(B134) No. 31 (+) — Chassis ground (−):

Is the difference in measured values for the main accelerator pedal position sensor signal and the sub accelerator pedal position sensor signal 0 V-

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P2138 THROTTLE/PEDAL POSITION SENSOR/SWITCH "D"/"E" VOLTAGE CORRELATION

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P2138 THROTTLE/PEDAL POSITION SENSOR/SWITCH "D"/"E" VOLTAGE CORRELATION

2.CHECK ACCELERATOR PEDAL POSITION SENSOR OUTPUT.

1) Measure the voltage between accelerator pedal position sensor connector and chassis ground.

Connector & terminal

(B315) No. 6 (+) — Chassis ground (−):

(B315) No. 3 (+) — Chassis ground (−):

Is the difference in measured values for the main accelerator pedal position sensor signal and the sub accelerator pedal position sensor signal 0 V-

Replace the accelerator pedal. Accelerator Pedal

Repair the harness and connector.

NOTE:

In this case, repair the following item:

Open circuit of harness between ECM connector and accelerator pedal position sensor connector

Short circuit to ground in harness between ECM connector and accelerator pedal position sensor connector

Poor contact of coupling connector

3.CHECK HARNESS BETWEEN ECM AND ACCELERATOR PEDAL POSITION SENSOR CONNECTOR.

Measure the resistance of harness between the accelerator pedal position sensor connector and chassis ground.

Connector & terminal

(B315) No. 5 — Chassis ground:

(B315) No. 2 — Chassis ground:

Is the resistance less than 5 --

Repair the poor contact of ECM connector.

Repair the harness and connector.

NOTE:

In this case, repair the following item:

Open circuit of harness between ECM connector and accelerator pedal position sensor connector

Open circuit of harness between ECM connector and engine ground

Poor contact of ECM connector

1. OUTLINE OF DIAGNOSIS

Judge as NG when the signal level of accelerator pedal position sensor 1 is different from the accelerator pedal position sensor 2.

2. COMPONENT DESCRIPTION

(1)

Engine control module (ECM)

(3)

Accelerator pedal position sensor 2 signal

(4)

Accelerator pedal position sensor

(2)

Accelerator pedal position sensor 1 signal

3. EXECUTION CONDITION

Secondary Parameters

Execution condition

Battery voltage

≥ 6 V

4. GENERAL DRIVING CYCLE

Always perform the diagnosis continuously.

5. DIAGNOSTIC METHOD

If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.

Judgment Value

Malfunction Criteria

Threshold Value

Signal difference between two sensors

Within NG range of Details of Judgment value

Details of Judgment Value

(X1)

0.6 °

(X2)

1.2 °

(X3)

2 °

(X4)

4 °

(Y1)

1.465 °

(Y2)

1.597 °

(Y3)

1.663 °

(Y4)

2.455 °

(Y5)

3.116 °

Time Needed for Diagnosis: 116 ms

Malfunction Indicator Light Illumination: Illuminates as soon as a malfunction occurs.
