Subaru Legacy Service Manual: Dtc p2764 torque converter clutch pressure control solenoid control circuit low

Subaru Legacy Service Manual / Continuously variable transmission (diagnostics) / Diagnostic procedure with diagnostic trouble code (dtc) / Dtc p2764 torque converter clutch pressure control solenoid control circuit low

DTC DETECTING CONDITION:

Immediately at fault recognition

TROUBLE SYMPTOM:

No lock-up occurs.

1. ENGINE TYPE FB

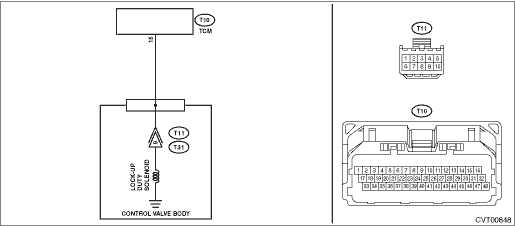

WIRING DIAGRAM:

CVT control system CVT Control System > WIRING DIAGRAM

STEPCHECKYESNO

1.CHECK HARNESS.

CAUTION:

Start work after ATF cools down.

1) Turn the ignition switch to OFF.

2) Disconnect the TCM connector.

3) Remove the transmission valve cover.

4) Disconnect the control valve body connector.

5) Measure the resistance between TCM connector and chassis ground.

Connector & terminal

(T10) No. 15 — Chassis ground:

Is the resistance 1 M- or more-

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P2764 TORQUE CONVERTER CLUTCH PRESSURE CONTROL SOLENOID CONTROL CIRCUIT LOW

Repair the short circuit of harness.

2.CHECK LOCK-UP DUTY SOLENOID.

1) Connect the connector for control valve body.

2) Measure the resistance between TCM connector and transmission body.

Connector & terminal

(T10) No. 15 — Transmission body:

Is the resistance approx. 10 — 13.5 -- (when cold)

Check for poor contact of connector, and if no fault is found, replace the TCM. Transmission Control Module (TCM)

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P2764 TORQUE CONVERTER CLUTCH PRESSURE CONTROL SOLENOID CONTROL CIRCUIT LOW

3.CHECK HARNESS INSIDE TRANSMISSION.

Check for the harness pinch, damage.

Is there any fault in the harness-

Replace the transmission harness.

Replace the control valve body. Control Valve Body

2. ENGINE TYPE EZ

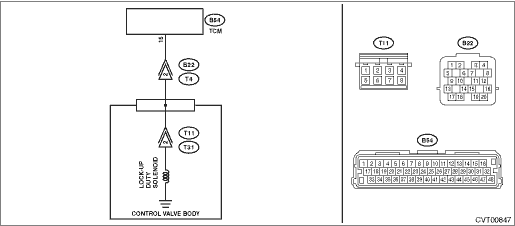

WIRING DIAGRAM:

CVT control system CVT Control System > WIRING DIAGRAM

STEPCHECKYESNO

1.CHECK HARNESS.

1) Turn the ignition switch to OFF.

2) Disconnect the TCM and transmission connectors.

3) Measure the resistance between TCM connector and chassis ground.

Connector & terminal

(B54) No. 15 — Chassis ground:

Is the resistance 1 M- or more-

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P2764 TORQUE CONVERTER CLUTCH PRESSURE CONTROL SOLENOID CONTROL CIRCUIT LOW

Repair the short circuit of harness.

2.CHECK LOCK-UP DUTY SOLENOID.

Measure the resistance between transmission connector and transmission body.

Connector & terminal

(T4) No. 2 — Transmission body:

Is the resistance approx. 10 — 13.5 -- (when cold)

Check for poor contact of connector, and if no fault is found, replace the TCM. Transmission Control Module (TCM)

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P2764 TORQUE CONVERTER CLUTCH PRESSURE CONTROL SOLENOID CONTROL CIRCUIT LOW

3.CHECK HARNESS INSIDE TRANSMISSION.

CAUTION:

Start work after ATF cools down.

1) Remove the transmission oil pan.

2) Check for the harness pinch, damage.

Is there any fault in the harness-

Replace the transmission harness.

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P2764 TORQUE CONVERTER CLUTCH PRESSURE CONTROL SOLENOID CONTROL CIRCUIT LOW

4.CHECK HARNESS INSIDE TRANSMISSION.

1) Disconnect the control valve body connector.

2) Measure the resistance between transmission connector and transmission body.

Connector & terminal

(T4) No. 2 — Transmission body:

Is the resistance 1 M- or more-

Replace the control valve body. Control Valve Body

Replace the transmission harness.

3. OUTLINE OF DIAGNOSIS

Detect the ground short of the lock-up clutch pressure control solenoid drive circuit.

Judge as NG if a ground short circuit is detected more than 10 times in the lock-up clutch pressure control solenoid drive circuit.

4. EXECUTION CONDITION

Secondary Parameters

Execution condition

12 V battery system voltage

≥ 9 V

Commanded duty of torque converter clutch pressure control solenoid

100%

5. DIAGNOSTIC METHOD

If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.

Judgment Value

Malfunction Criteria

Threshold Value

Signal of malfunction from solenoid driver IC

ON

As defined by:

Measured torque converter clutch pressure control solenoid voltage ≤ 0.8 V

Time Needed for Diagnosis: 0.2 seconds

Malfunction Indicator Light Illumination: Illuminates as soon as a malfunction occurs.
