Subaru Legacy Service Manual: Electrical component location location

Subaru Legacy Service Manual / Engine (diagnostics)(h4do) / Electrical component location location

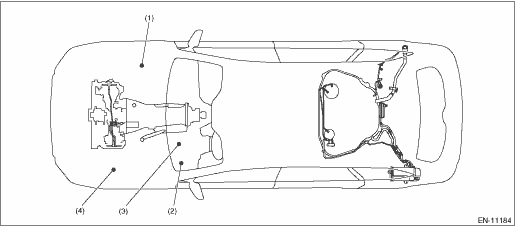

1. CONTROL MODULE

(1)

Engine control module (ECM)

(3)

Malfunction indicator light

(4)

Delivery (test) mode fuse

(2)

Data link connector

2. SENSOR

(1)

Tumble generator valve actuators (with built-in opening angle switch)

(5)

Battery sensor

(8)

Engine coolant temperature sensor

(2)

Electronic throttle control

(6)

Intake camshaft position sensor

(9)

Knock sensor

(3)

Manifold absolute pressure sensor

(7)

Engine oil temperature sensor

(10)

Mass air flow and intake air temperature sensor

(4)

Crankshaft position sensor

(1)

Front oxygen (A/F) sensor

(3)

Rear oxygen sensor

(4)

Rear catalytic converter

(2)

Front catalytic converter

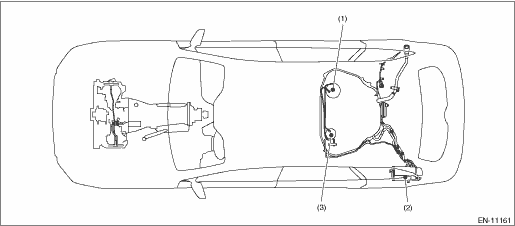

(1)

Fuel level sensor

(2)

Leak check valve ASSY (with built-in pressure sensor)

(3)

Fuel sub level sensor

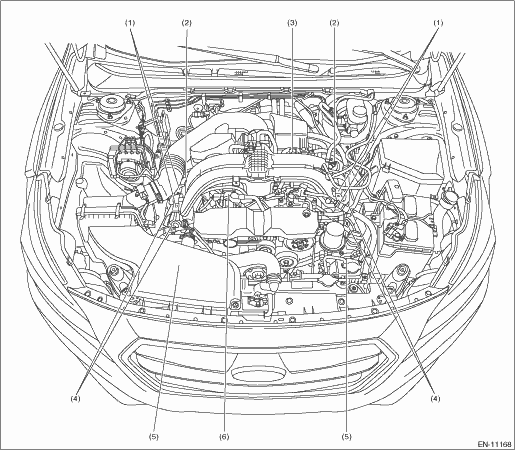

3. SOLENOID VALVE, ACTUATOR, EMISSION CONTROL SYSTEM PARTS AND IGNITION SYSTEM PARTS

(1)

Fuel injector

(3)

Purge control solenoid valve

(5)

Intake oil control solenoid

(2)

Tumble generator valve actuator

(4)

Ignition coil

(6)

EGR control valve

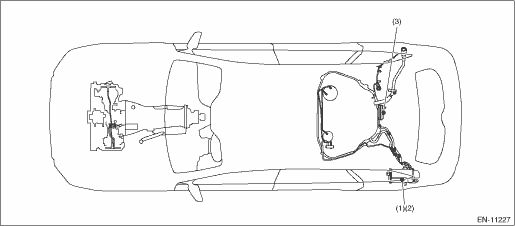

(1)

Leak check valve ASSY

(2)

Canister

(3)

Drain filter

(1)

Starter

(6)

Starter cut relay

(11)

Electronic throttle control relay

(2)

Fuel pump

(7)

Push button ignition switch

(12)

Fuel pump relay

(3)

IG1 relay

(8)

Radiator main fan relay 2

(13)

Main relay

(4)

Starter relay

(9)

Radiator main fan relay 1

(14)

IG1 relay (push button start)

(5)

IG2 relay

(10)

Radiator sub fan relay

4. TRANSMISSION

(1)

Inhibitor switch (CVT model)

(2)

Neutral position switch (MT model)
