Subaru Legacy Service Manual: Electrical component location location

Subaru Legacy Service Manual / Eyesight (diagnostics) / Electrical component location location

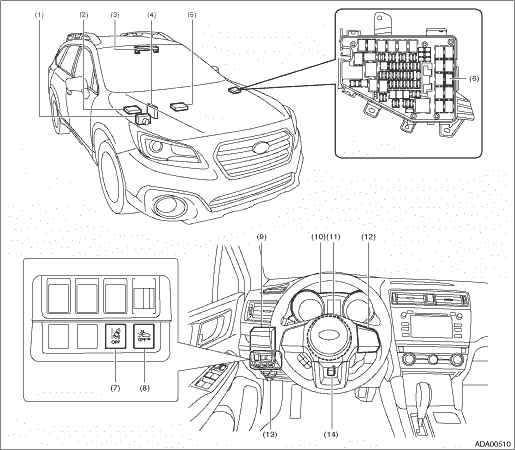

(1)

VDC CM

(6)

Brake light relay

(11)

Steering angle sensor

(2)

TCM (engine type: EZ)

(7)

Lane departure warning OFF switch

(12)

EyeSight steering switch

(3)

Stereo camera

(8)

Pre-collision brake OFF switch

(13)

Data link connector

(4)

ECM

(9)

Body integrated unit

(14)

Stop light and brake switch

(5)

TCM (engine type: FB)

(10)

Combination meter

(1)

Adaptive cruise display

(7)

Lane indicator (left)

(13)

Steering wheel indicator

(2)

Conventional cruise display

(8)

Preceding vehicle indicator

(14)

EyeSight temporary stop indicator

(3)

READY indicator

(9)

Following distance setting indicator

(15)

EyeSight warning indicator

(4)

OFF indicator

(10)

Lane indicator (right)

(16)

Lane departure warning OFF indicator light

(5)

SET indicator

(11)

Lane keep display

(17)

Pre-collision brake OFF indicator light

(6)

HOLD indicator

(12)

Set vehicle speed display

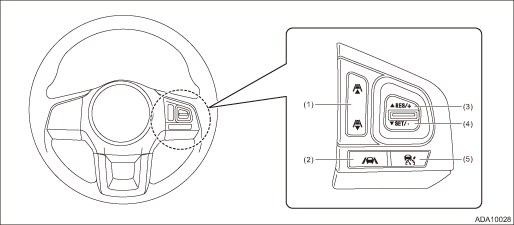

(1)

Following distance setting switch

(3)

RES/+ (resume/plus) switch

(5)

CRUISE switch

(2)

Lane keep switch

(4)

SET/− (set/minus) switch

Clear memory mode operation
1. On «Start» display, select «Diagnosis».2. On «Vehicle selection» display, input the target vehicle information and select «Confirmed».3. On «Main Menu» display, select «Each System».4. ...

Real-time diagnosis operation
1. On «Start» display, select «Diagnosis».2. On «Vehicle selection» display, input the target vehicle information and select «Confirmed».3. On «Main Menu» display, select «Each System».4. ...
