Subaru Legacy BN/BS (2015-2019) Service Manual: Electrical component location location

Subaru Legacy BN/BS (2015-2019) Service Manual / Immobilizer (diagnostics) / Electrical component location location

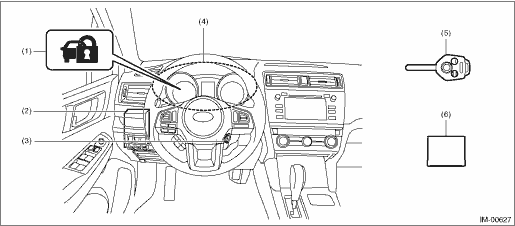

(1)	Security indicator light	(3)	Immobilizer antenna	(5)	Ignition key
(2)	Body integrated unit	(4)	Combination meter	(6)	Immobilizer control module (C0 and C5 models)
