Subaru Legacy Service Manual: Electrical component location location

Subaru Legacy Service Manual / Infotainment system (diagnostics) / Electrical component location location

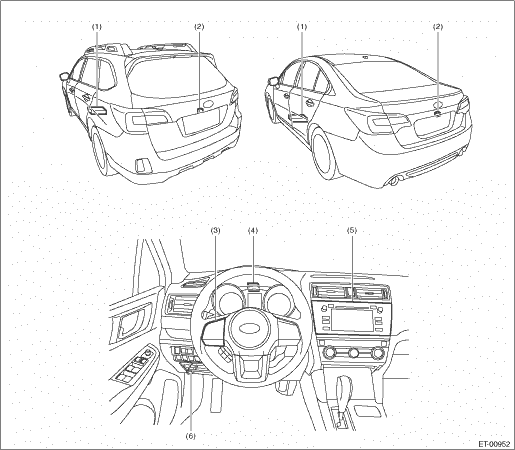

(1)

Audio amplifier (if equipped)

(3)

Satellite switch

(5)

Audio (7-inch display) or navigation unit

(2)

Rearview camera (if equipped)

(4)

GPS antenna (if equipped)

(6)

Data link connector

Diagnostics with phenomenon list
1. AUDIO SYSTEMSymptomsReferencePower will not turn ON. Diagnostics with Phenomenon > INSPECTIONThe screen freezes and does not accept any operation entry. Diagnostics with Phenomenon > INSPECTIONThe ...

Inspection mode operation
DTC can be diagnosed by executing the Inspection Mode. After correcting the DTC, perform a necessary inspection mode and make sure that the function is resumed correctly and the DTC is recorded.1. Per ...
