Subaru Legacy BN/BS (2015-2019) Service Manual: Electrical component location location

Subaru Legacy BN/BS (2015-2019) Service Manual / Lan system (diagnostics) / Electrical component location location

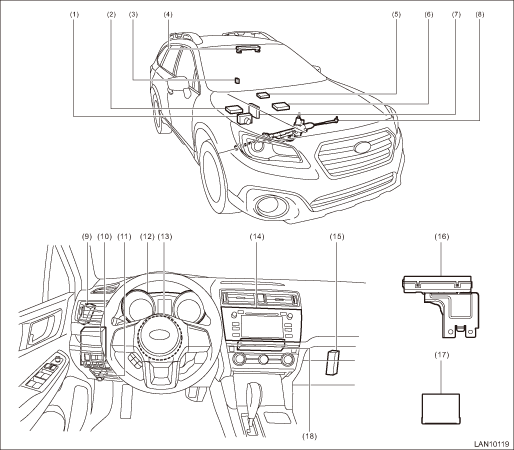

(1)	VDC CM	(7)	Engine CM	(13)	Steering angle sensor
(2)	Transmission CM (engine type: EZ)	(8)	Power steering CM	(14)	Audio or navigation
(3)	Radar sensor LH	(9)	Auto headlight beam leveler CM (AHL CM) or steering responsive fog light CM (SRF CM)	(15)	A/C CM
(4)	Stereo camera	(10)	Body integrated unit	(16)	Keyless access CM
(5)	Airbag CM (in console box)	(11)	Data link connector	(17)	Immobilizer CM (For C0 and C5 models)
(6)	Transmission CM (engine type: FB)	(12)	Combination meter	(18)	Data communication module (DCM)

Clear memory mode operation

1. On «Start» display, select «Diagnosis».2. On «Vehicle selection» display, input the target vehicle information and select «Confirmed».3. On «Main Menu» display, select «All diagnosis cod ...

General diagnostic table inspection

ItemOperationSpecificationsNoteYESNODiagnostic trouble codeDTC is displayed when inspecting all DTCs.Perform the diagnosis according to DTC.System is normal. — SpeedometerFaster vehicle speed than t ...
