1. Check that the electronic throttle control relay has no deformation, cracks or other damages.

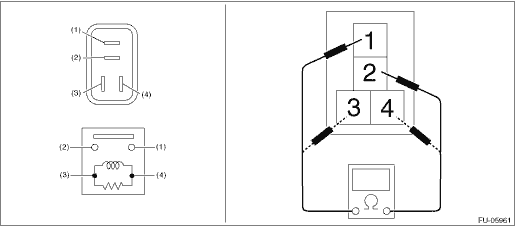

2. Measure the resistance between electronic throttle control relay terminals.

Terminal No.	Standard
1 and 2	1 M- or more
3 and 4	130.4 — 230.8 - (when 20°C (68°F))

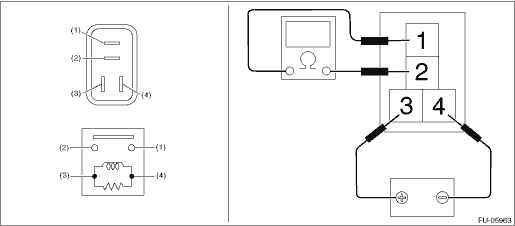

3. Connect battery positive terminal to terminal No. 3 and battery ground terminal to terminal No. 4, and measure the resistance between the electronic throttle control relay terminals.

Terminal No.	Standard
1 and 2	Less than 1 -
