Subaru Legacy BN/BS (2015-2019) Service Manual: Inspection

1. UNIT INSPECTION

Check the following items, and if there is anything out of standard value, it is considered to be damaged. If so, replace it with a new part.

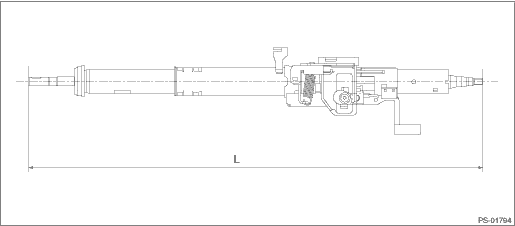

Measure the whole length of the column assembly - steering.

Standard: Overall length L

Tilt (measure at the neutral position) and telescopic column (measure at the longest position)

857.1+1.5 −1.5 mm (33.74+0.059 −0.059 in)

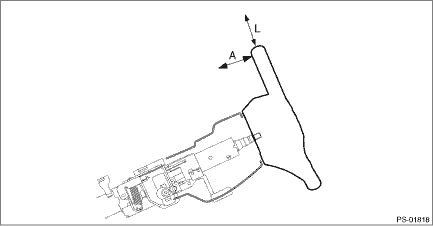

Check the steering wheel deflection in axial and vertical directions.

Specification:

Axial deflection A (deflection of steering wheel)

Less than 6 mm (0.24 in)

Vertical deflection L (runout of steering wheel)

Less than 17 mm (0.68 in)

2. INSPECTION OF AIRBAG SYSTEM

Refer to “AIRBAG SYSTEM” section for airbag inspection procedure. Driver’s Airbag Module > INSTALLATION

Removal
CAUTION:Before handling the airbag system components, always refer to “CAUTION” of “General Description” in “AIRBAG SYSTEM”. General Description > CAUTION1. Adjust ...

Installation
CAUTION:• When removing, installing or replacing the VDCCM&H/U, VDCCM&H/U bracket, steering wheel or steering angle sensor (steering roll connector), perform “VSC(VDC) Centering Mode&rdquo ...
