Subaru Legacy Service Manual: Inspection locations after a collision inspection

Subaru Legacy Service Manual / Airbag system / Inspection locations after a collision inspection

If the vehicle is involved in a collision, even if it is a slight collision, be sure to check the following systems.

1. DRIVER’S AIRBAG MODULE ASSEMBLY

1. Frontal collision (driver’s airbag module assembly activated)

(1) Replace the following parts with new ones.

Airbag control module

Driver’s airbag module

Passenger’s airbag module (if deployed)

Driver’s seat cushion airbag

Passenger’s seat cushion airbag (if deployed)

Curtain airbag module (right and left / if deployed)

Seat belt pretensioner (right and left)

Front sub sensor (right and left)

Instrument panel assembly (because it is integrated with passenger’s airbag module) (if passenger’s airbag module is deployed)

Column ASSY - steering

Roll connector

Trim panel - roof assembly (if the curtain airbag is deployed)

Trim panel of each pillar (if the curtain airbag is deployed)

(2) Visually inspect the following items and replace any damaged part with a new one.

Steering wheel

Beam COMPL - steering

Harnesses and connectors on body side that are linked to the replaced parts

2. Frontal collision (driver’s airbag module not activated)

Visually inspect the following items and replace any damaged or cracked part with a new one.

Specially inspect the damage of airbag module body, mounting bracket and harness connector.

Driver’s airbag module

Passenger’s airbag module

Seat cushion airbag module

Seat belt pretensioner (right and left)

Front sub sensor (right and left)

Instrument panel assembly (because it is integrated with passenger’s airbag module)

3. No frontal collision

Visually inspect the airbag modules for damage or contamination and replace any faulty part with a new one.

2. PASSENGER’S AIRBAG MODULE

1. Frontal collision (passenger’s airbag module activated)

(1) Replace the following parts with new ones.

Airbag control module

Driver’s airbag module

Seat cushion airbag module (right and left)

Passenger’s airbag module

Curtain airbag module (right and left / if deployed)

Seat belt pretensioner (right and left)

Front sub sensor (right and left)

Instrument panel assembly (because it is integrated with passenger’s airbag module)

Trim panel - roof assembly (if the curtain airbag is deployed)

Trim panel of each pillar (if the curtain airbag is deployed)

(2) Visually inspect the following items and replace any damaged part with a new one.

Beam COMPL - steering

Harnesses and connectors on body side that are linked to the replaced parts

2. Frontal collision (passenger’s airbag module not activated)

Visually inspect the following items and replace any damaged or cracked part with a new one.

Specially inspect the damage of airbag module body, mounting bracket and harness connector.

Driver’s airbag module

Driver’s seat cushion airbag

Passenger’s seat cushion airbag (if deployed)

Passenger’s airbag module

Seat belt pretensioner (right and left)

Front sub sensor (right and left)

Instrument panel assembly (because it is integrated with passenger’s airbag module)

3. No frontal collision

Visually inspect the airbag modules for damage or contamination and replace any faulty part with a new one.

3. SEAT CUSHION AIRBAG MODULE

1. Frontal collision (seat cushion airbag module activated)

(1) Replace the following parts with new ones.

Frame assembly - front seat cushion (driver’s seat side only)

Panel - front seat (driver’s seat side only)

Seat cushion pad and frame assembly (passenger’s seat side only) (when the passenger’s seat cushion airbag is deployed)

Airbag control module

Driver’s airbag module

Driver’s seat cushion airbag

Passenger’s seat cushion airbag (if deployed)

Passenger’s airbag module

Curtain airbag module (right and left / if deployed)

Seat belt pretensioner (right and left)

Front sub sensor (right and left)

Column assembly - steering

Trim panel - roof assembly (if the curtain airbag is deployed)

Trim panel of each pillar (if the curtain airbag is deployed)

(2) Visually inspect the following items and replace any damaged part with a new one.

Side airbag module

Seat belt inner - front

Harness assembly - power seat

Pad assembly - front seat cushion

Cover COMPL - front seat cushion

Seat heater module - front seat cushion

Headrest assembly

Bushing - lock headrest

Slide rail assembly - OUT

Slide rail assembly - INN

Harnesses and connectors on body side that are linked to the replaced parts

2. Frontal collision (seat cushion airbag module not activated)

Visually inspect the following items and replace any damaged or cracked part with a new one.

Specially inspect the damage of airbag module body, mounting bracket and harness connector.

Driver’s airbag module

Seat cushion airbag module

Passenger’s airbag module

Seat belt pretensioner (right and left)

Front sub sensor (right and left)

Instrument panel assembly (because it is integrated with passenger’s airbag module)

3. No frontal collision

Visually inspect the airbag modules for damage or contamination and replace any faulty part with a new one.

4. SIDE AIRBAG MODULE

1. Side impact (side airbag module activated)

(1) Replace the following parts with new ones.

Airbag control module

Seat cushion airbag module (collision side)

Front door impact sensor (collision side)

Seat belt pretensioner (collision side / if deployed)

Side airbag module (collision side)

Side airbag sensor (collision side)

Curtain airbag module (collision side)

Curtain airbag sensor (collision side)

Pad assembly - front seat backrest (collision side)

Frame assembly - front seat cushion (collision side)

Frame assembly - front seat backrest (collision side)

Cover COMPL - front seat backrest (collision side)

Trim panel - roof assembly (collision side)

Trim panel for each pillar (collision side)

(2) Visually inspect the following items and replace any damaged part (collision side) with a new one.

Headrest assembly

Bushing - lock headrest

Slide rail assembly - OUT

Slide rail assembly - INN

Cover - hinge front seat

Knob - lifter

Lever - reclining

Harnesses and connectors on body side that are linked to the replaced parts

2. Side impact (side airbag module not activated)

Visually inspect the following items and replace any damaged or cracked part (collision side) with a new one.

Specially inspect the damage of airbag module body, mounting bracket and harness connector.

Pad assembly - front seat backrest

Frame assembly - front backrest

Cover COMPL - front backrest

Front door impact sensor

Side airbag module

Side airbag sensor

Curtain airbag module

Curtain airbag sensor

3. No side impact

Visually inspect the airbag modules for contamination and replace any faulty part with a new one.

5. CURTAIN AIRBAG MODULE

1. Side impact or roll over (curtain airbag module activated)

(1) Replace the following parts with new ones.

Airbag control module

Seat cushion airbag module (collision side)

Curtain airbag module (operating side)

Seat belt pretensioner (if deployed)

Front door impact sensor (operating side)

Side airbag sensor (operating side)

Curtain airbag sensor (operating side)

Pad assembly - front seat backrest (collision side)

Frame assembly - front seat cushion (collision side)

Frame assembly - front seat backrest (collision side)

Cover COMPL - front seat backrest (collision side)

Trim panel - roof assembly (operating side)

Trim panel for each pillar (operating side)

(2) Visually inspect the following items and replace any damaged part (collision side) with a new one.

Assist rail - front and rear

Bracket - assist rail front and rear

Harnesses and connectors on body side that are linked to the replaced parts

2. Side impact (curtain airbag module not activated)

Visually inspect the following items and replace any damaged or cracked part (collision side) with a new one.

Specially inspect the damage of airbag module body, mounting bracket and harness connector.

Trim panel - roof assembly

Trim panel for each pillar

Curtain airbag module

Front door impact sensor

Side airbag sensor

Curtain airbag sensor

3. No side impact

Visually inspect the airbag covers for damage or contamination and replace any faulty part with a new one.

6. AIRBAG CONTROL MODULE

Check for the following, and replace the damaged parts with new parts.

Control module is cracked or deformed.

Mounting bracket is cracked or deformed.

Connector is scratched, cracked or deformed.

Driver’s airbag module has been activated.

Passenger’s airbag module has been activated.

Seat cushion airbag module has been activated.

Side airbag module has been activated.

Curtain airbag module has been activated.

Seat belt pretensioner has been activated.

7. FRONT SUB SENSOR

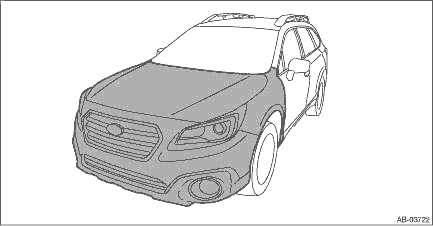

If the section of vehicle as shown in the figure is damaged, check the following items and replace the damaged parts with new parts.

Front sub sensor is cracked or deformed.

Connector is scratched, cracked or deformed.

Driver’s airbag module, passenger’s airbag module or seat cushion airbag module has been activated.

8. FRONT DOOR IMPACT SENSOR, SIDE AIRBAG SENSOR AND CURTAIN AIRBAG SENSOR

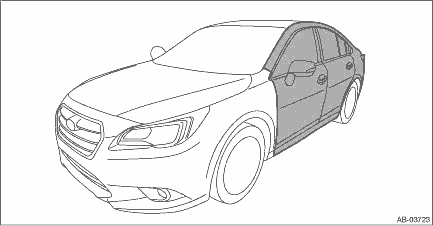

Front door impact sensor, side airbag sensor and curtain airbag sensor are cracked or deformed.

Connector is scratched, cracked or deformed.

Side airbag module or curtain airbag module has been activated. (Operating side)

Front door is dented or deformed. (Operating side)

9. ROLL CONNECTOR

Check for the following, and replace the damaged parts such as cracks, deformation, etc. with new parts.

Combination switch

Steering roll connector

10. COLUMN ASSEMBLY - STEERING & STEERING WHEEL

Check the following items, and if there is anything out of standard value, it is considered to be damaged. If so, replace it with a new part. Steering Column > INSPECTION

11. PASSENGER’S SEAT

Check for the following, and replace the damaged parts with new parts.

Body or bracket of the seat belt inner - front is scratched, cracked or deformed.

Frame assembly - front backrest is cracked or deformed.

Headrest assembly for deformation or play

If the cover - front cushion and the cover COMPL - front backrest is damaged or frayed, replace the cover with a new part.

If the cover - front cushion and the seat heater are replaced, replace the cover hang wire with a new part.

CAUTION:

If any of the following applies, replace the pad assembly - front seat cushion & frame assembly - front cushion as a unit. Do not disassemble.

The frame assembly - front cushion or the pad assembly - front seat cushion is cracked or deformed.

Scratches, cracks, or deformation found on the occupant detection system sensor mat or occupant detection control module, or attachment brackets of the control module.

Harness and/or connector is cracked, deformed or open. Harness wire is exposed.

12. INSPECTION OF OTHER PARTS

Check for the following parts, and replace the damaged parts with new parts.

1. Steering wheel and column assembly - steering

Mounting conditions and deflection of front and rear, upward and downward directions of the steering wheel and column assembly - steering

Deflection in the front/rear and upward/downward directions of the column assembly - steering, as well as its mounting condition to vehicle body (After a collision, absorbing structure on the column assembly - steering may have been functioned.)

2. Check the direct type connector of driver’s airbag module, curtain airbag module, pretensioner, etc. for damage, and also check each harness for pinch and connector damage. Replace the main harness as a unit if damage is found.

3. Check the seat cushion, backrest, slide rail and headrest for installation condition and looseness.

4. If any break or fray is found in the cover COMPL - front backrest of the driver’s seat or passenger’s seat, the side airbag system may not operate normally. In this case, replace the cover COMPL - front backrest with a new part.

5. For the passenger’s seat, replace the frame assembly - front cushion with a new part if the frame assembly - front cushion is deformed or cracked.

6. If there are tears or loosening in the seat cover COMPL - front seat on the passenger’s side, it may interfere with the proper operation of the occupant detection system. Replace the cover - front cushion with a new part.

7. When the passenger’s seat cover COMPL - front seat has been removed or replaced, make sure that the occupant detection system operates normally.

8. Use the Subaru Select Monitor to check whether the passenger’s seat belt buckle switch is operating normally.

9. If the securing clip mounting area of curtain airbag module or the bracket - assist rail is deformed or cracked, replace the defective part.
