Subaru Legacy Service Manual: Installation

1. FRONT BRAKE HOSE

1. Secure the brake hose to the brake hose mount part of strut COMPL.

Tightening torque:

Brake hose: 33 N·m (3.4 kgf-m, 24.3 ft-lb)

2. Connect the brake hose to the caliper body assembly using a new gasket.

Tightening torque:

Union bolt: 26 N·m (2.7 kgf-m, 19.2 ft-lb)

3. Position the disc rotor in straight position and route the brake hose through the hole in the bracket on the wheel apron side.

CAUTION:

Do not twist the brake hose.

4. Connect the brake pipe and the hose, then temporarily tighten the flare nut.

5. Secure the brake hose to wheel apron bracket with clamp.

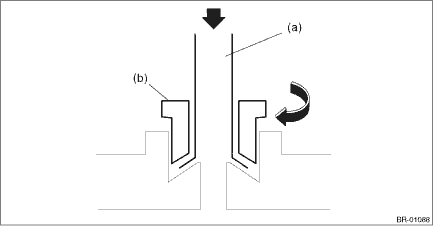

6. Turn and tighten the flare nut (b) by hand while pushing the brake pipe (a) away from yourself.

CAUTION:

Be careful not to make scratches or other damage to the inside surface of the brake pipe flare.

Tightening torque:

Brake pipe flare nut: 15 N·m (1.53 kgf-m, 11.1 ft-lb)

7. Bleed air from the brake system. Air Bleeding > PROCEDURE

2. REAR BRAKE HOSE

1. Route the brake hose through the hole of bracket, and lightly tighten the flare nut to connect brake pipe.

2. Insert the clamp to secure brake hose.

Tightening torque:

Brake hose bracket: 33 N·m (3.4 kgf-m, 24.3 ft-lb)

3. Install the brake hose to rear caliper body using a new gasket.

Tightening torque:

Union bolt: 26 N·m (2.7 kgf-m, 19.2 ft-lb)

4. Turn and tighten the flare nut (b) by hand while pushing the brake pipe (a) away from yourself.

CAUTION:

Be careful not to make scratches or other damage to the inside surface of the brake pipe flare.

Tightening torque:

Brake pipe flare nut: 15 N·m (1.53 kgf-m, 11.1 ft-lb)

5. Bleed air from the brake system. Air Bleeding > PROCEDURE

Inspection
Check the hose for crack, interference with other parts, damage, and fluid leakage on connecting sections. If any faulty is found, repair or replace the relevant part. ...
