Subaru Legacy Service Manual: Installation

1. Insert the ST into the clutch disc and insert the ST end into the pilot bearing.

NOTE:

When installing the clutch disc, be careful to attach in the correct direction.

ST 499747100CLUTCH DISC GUIDE

(A)

Flywheel side

2. Install the clutch cover and tighten the bolts to specified torque.

NOTE:

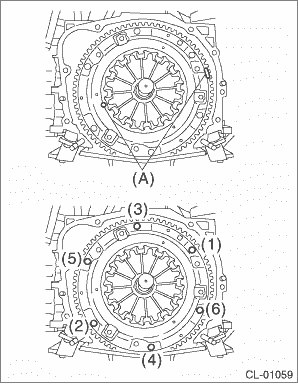

When installing a clutch cover, position the clutch cover so that the spacing between the unbalance marks (paint mark) on the flywheel and clutch cover is 120° or more apart. (The unbalance mark indicates the direction of residual unbalance.)

Temporarily tighten the bolts by hand. Each bolt should be tightened to the specified torque in a crisscross order.

Tightening torque:

16 N·m (1.6 kgf-m, 11.8 ft-lb)

(A)

Unbalance mark (paint)

3. Remove the ST.

ST 499747100CLUTCH DISC GUIDE

4. Install the transmission assembly. Manual Transmission Assembly > INSTALLATION

Inspection
1. CLUTCH DISC1. Facing wearMeasure the depth from the facing surface to the rivet head. Replace if the face is worn locally or worn down to less than the specified value.Depth to rivet head:Limit of ...
