Subaru Legacy Service Manual: Installation

CAUTION:

When installing the CVTF cooler pipe assembly on vehicle side, be careful not to bend the A/C pipe.

1. Temporarily install the CVTF cooler pipe COMPL, transmission hanger and transmission radio ground cord to the transmission.

NOTE:

Use a new gasket.

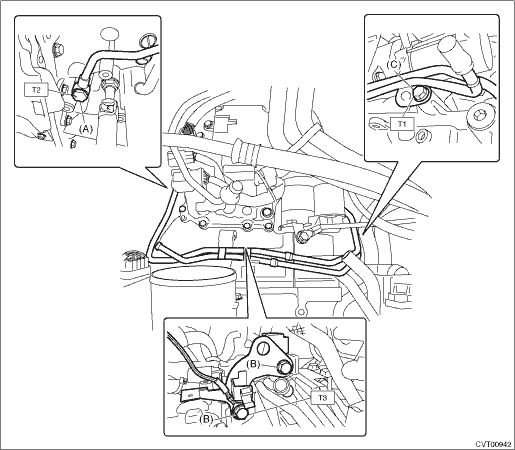

2. Tighten the union screws and bolts in the order of (A) > (B) > (C).

Tightening torque:

T1: 35 N·m (3.6 kgf-m, 25.8 ft-lb)

T2: 40 N·m (4.1 kgf-m, 29.5 ft-lb)

T3: 41 N·m (4.2 kgf-m, 30.2 ft-lb)

3. Install the air breather hose. Air Breather Hose > INSTALLATION

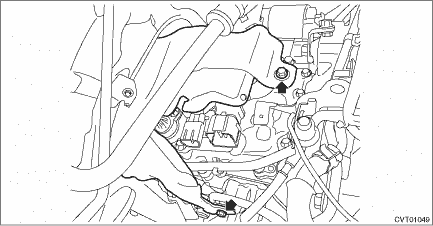

4. Insert the transmission case cover (small) between transmission case cover (large) and transmission to install.

NOTE:

When inserting, be careful that the insulator inside transmission case cover is not turned over.

Tightening torque:

7 N·m (0.7 kgf-m, 5.3 ft-lb)

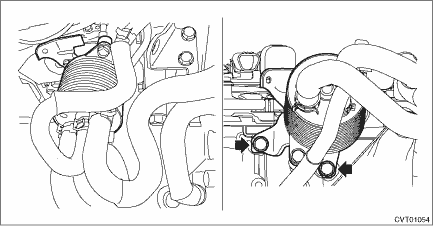

5. Install the CVTF cooler (with warmer feature).

Tightening torque:

23 N·m (2.3 kgf-m, 17.0 ft-lb)

6. Replace the CVTF cooler hose with a new part. CVTF Cooler (With Warmer Function) > DISASSEMBLY CVTF Cooler (With Warmer Function) > ASSEMBLY

7. Install the CVTF cooler hose.

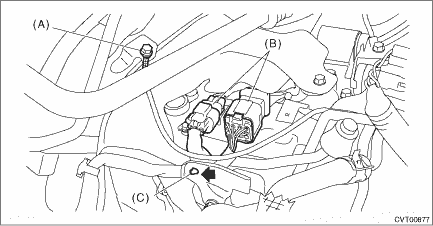

8. Install the harness clip, and connect the following transmission radio ground terminal and transmission harness connector.

Tightening torque:

13 N·m (1.3 kgf-m, 9.6 ft-lb)

(A)

Transmission radio ground terminal

(B)

Transmission harness connectors

(C)

Harness clip

9. Install the CVTF cooler pipe assembly.

Tightening torque:

7.5 N·m (0.8 kgf-m, 5.5 ft-lb)

10. Install the A/C pipe to clip.

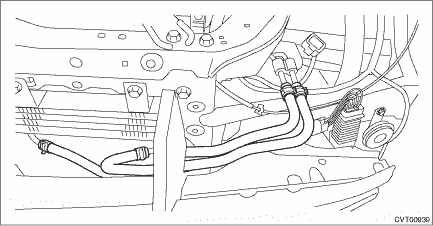

11. Install the CVTF cooler (air cool) inlet hose and the CVTF cooler (air cool) outlet hose.

NOTE:

Use new CVTF cooler (air cool) inlet hose and the CVTF cooler (air cool) outlet hose.

12. Install the headlight assembly LH. Headlight Assembly > INSTALLATION

13. Install the front bumper. Front Bumper > INSTALLATION

14. Lift up the vehicle.

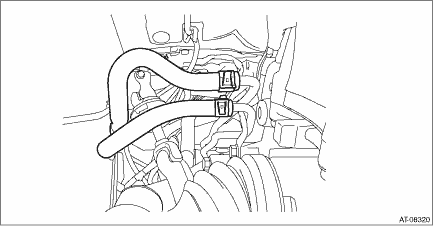

15. Install the CVTF CVT inlet hose and CVTF CVT outlet hose.

NOTE:

Use new CVTF CVT inlet hose and CVTF CVT outlet hose.

16. Lower the vehicle.

17. Install the air intake boot assembly. Air Intake Boot > INSTALLATION

18. Install the battery box and battery. Battery > INSTALLATION

19. Adjust the CVTF level and check there is no leakage. CVTF > ADJUSTMENT

Inspection
Repair or replace any faulty hoses, pipes, clamps, and washers found in the inspection below.• Check for CVTF leaks in joints at the transmission, CVTF cooler (air cool), pipes, and hoses.• ...
