Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

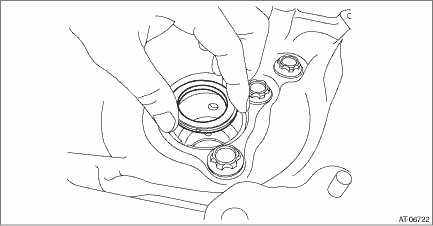

1. Install the thrust bearing to the converter case.

NOTE:

Face the temper color surface to the converter case side.

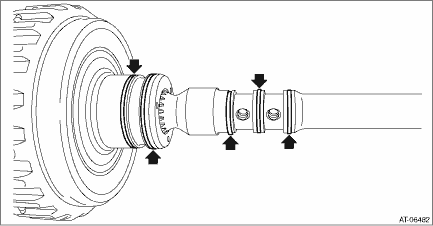

2. Install the seal ring to the input shaft.

NOTE:

Use new seal rings.

When installing the seal rings, do not expand the seal rings too much.

Apply CVTF to the seal rings.

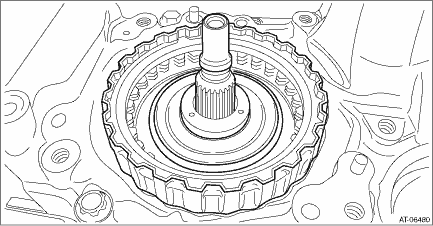

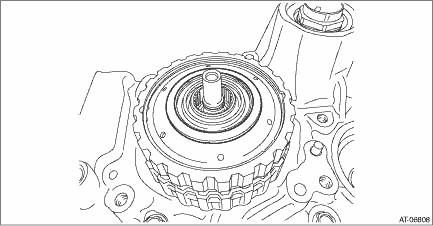

3. Install the forward clutch assembly to the converter case.

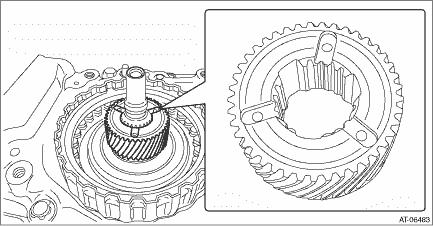

4. Install the sun gear.

NOTE:

Face the end face of the sun gear to the reverse brake side as shown in the figure.

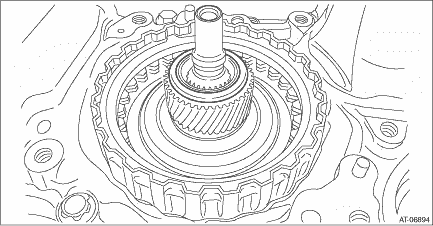

5. Install the thrust bearing to the sun gear.

NOTE:

Face the temper color surface to the reverse brake side.

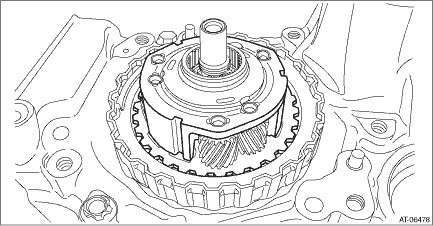

6. Install the planetary carrier.

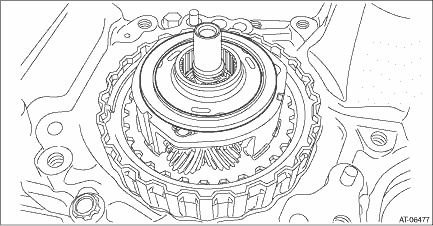

7. Install the thrust bearing.

NOTE:

Face the temper color surface to the reverse brake side.

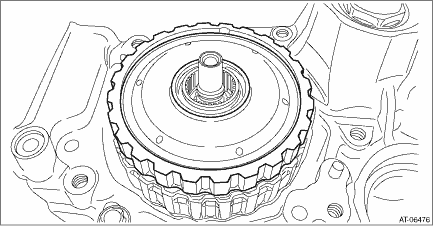

8. Install the internal gear.

9. Install the thrust bearing to the internal gear.

NOTE:

Face the temper color surface to the reverse brake side.

10. Select a washer. Forward Clutch Assembly > ADJUSTMENT

11. Install the reverse brake assembly. Reverse Brake Assembly > INSTALLATION

12. Install the primary pulley, secondary pulley and variator chain. Primary Pulley and Secondary Pulley > INSTALLATION

13. Install the reduction drive gear. Reduction Drive Gear > INSTALLATION

14. Install the transmission case. Transmission Case > INSTALLATION

15. Install the transmission control device. Transmission Control Device > INSTALLATION

16. Install the oil strainer and oil pan. Oil Pan and Strainer > INSTALLATION

17. Install the reduction driven gear assembly. Reduction Driven Gear > INSTALLATION

18. Install the transfer driven gear assembly. Transfer Driven Gear > INSTALLATION

19. Install the transfer clutch assembly. Transfer Clutch > INSTALLATION

20. Install the parking pawl. Parking Pawl > INSTALLATION

21. Install the extension case. Extension Case > INSTALLATION

22. Install the inhibitor switch. Inhibitor Switch > INSTALLATION

23. Install the secondary speed sensor. Secondary Speed Sensor > INSTALLATION

24. Install the primary speed sensor. Primary Speed Sensor > INSTALLATION

25. Install the turbine speed sensor. Turbine Speed Sensor > INSTALLATION

26. Install the transmission harness. Transmission Harness > INSTALLATION

27. Install the control valve body. Control Valve Body > INSTALLATION

28. Install the air breather hose. Air Breather Hose > INSTALLATION

29. Install the transmission assembly. Automatic Transmission Assembly > INSTALLATION
