Subaru Legacy Service Manual: Installation

1. Clean the mating surface of oil pump chain cover and converter case.

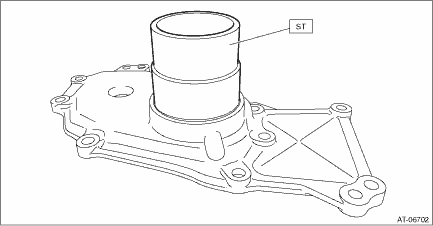

2. Using the ST, install the oil seal.

NOTE:

Use a new oil seal.

Apply CVTF to the oil seal lip and press-fitting surface.

ST 499755602PRESS SNAP RING

3. Install the drive sprocket.

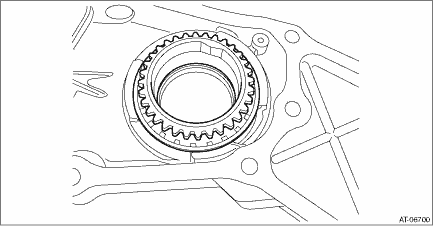

4. Install the snap ring so that its cutout portion is securely fitted into the snap ring groove of the oil pump chain cover.

(A)

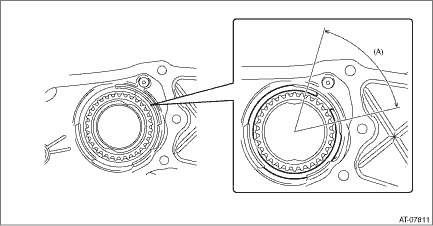

Installation range of cutout portion for snap ring

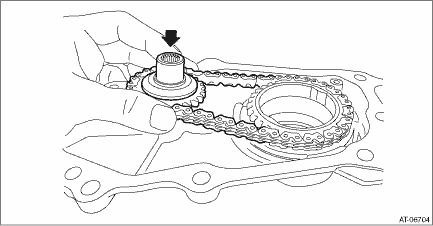

5. Place the oil pump chain on drive sprocket.

6. Place the oil pump chain on driven sprocket and install the driven sprocket to oil pump chain cover.

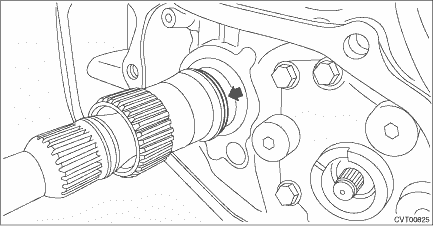

7. Install the seal rings.

NOTE:

Use new seal rings.

Apply CVTF to the seal rings.

When installing the seal rings, do not expand the seal rings too much.

8. Apply liquid gasket seamlessly to the mating surface of oil pump chain cover.

CAUTION:

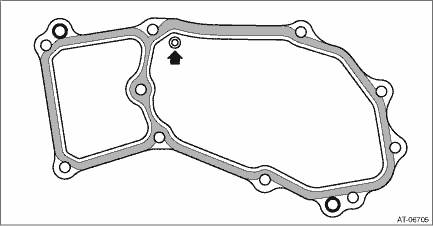

Do not apply liquid gasket at the arrowed hole.

Liquid gasket:

THREE BOND 1215B or equivalent

9. Install the oil pump chain cover.

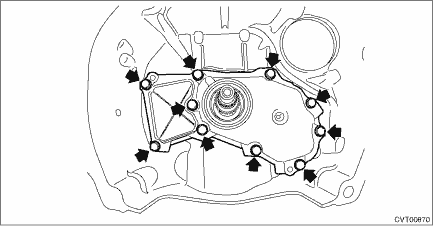

Tightening torque:

21 N·m (2.1 kgf-m, 15.5 ft-lb)

10. Install the torque converter assembly. Torque Converter Assembly > INSTALLATION

11. Install the transmission assembly. Automatic Transmission Assembly > INSTALLATION

Assembly
1. DRIVE SPROCKET1. Using the ST, install the ball bearing.NOTE:Use a new ball bearing.ST 499755502PRESS SNAP RING2. Install the snap ring. ...

Inspection
• Check the oil pump chain for damage.• Replace if gear teeth are broken, damaged, sharpen or excessively worn.• Check the bearing for seizure or wear.• Apply CVTF to bearing a ...
