Subaru Legacy Service Manual: Installation

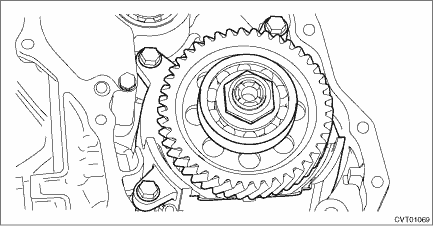

1. Install the reduction driven gear assembly and spacer oil.

Tightening torque:

17 N·m (1.7 kgf-m, 12.5 ft-lb)

2. Select the transfer drive gear shim. Reduction Drive Gear > ADJUSTMENT

3. Install the parking pawl. Parking Pawl > INSTALLATION

4. Attach the selected transfer drive gear shim to extension case with vaseline.

5. Install the transfer driven gear assembly. Transfer Driven Gear > INSTALLATION

6. Install the transfer clutch assembly. Transfer Clutch > INSTALLATION

7. Install the extension case. Extension Case > INSTALLATION

8. Install the transmission assembly. Automatic Transmission Assembly > INSTALLATION

Adjustment
1. Measure the height “A” from the ST upper face to the ball bearing catch surface.ST 499575600GAUGE2. Measure the height “B” from the ST to the mating surface of the transm ...

Inspection
• Check the ball bearing for smooth rotation.• Check the ball bearing for excessive looseness.• Make sure each gear is not broken or damaged. ...
