Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

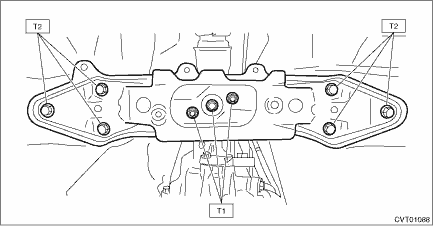

1. TRANSMISSION REAR CROSSMEMBER AND REAR CUSHION RUBBER 1. Attach the rear cushion rubber to the transmission. Tightening torque: 40 N·m (4.1 kgf-m, 29.5 ft-lb) 2. Install the crossmember. Tightening torque: T1: 35 N·m (3.6 kgf-m, 25.8 ft-lb) T2: 75 N·m (7.6 kgf-m, 55.3 ft-lb)
3. Remove the transmission jack. 4. Install the center exhaust cover. Tightening torque: 18 N·m (1.8 kgf-m, 13.3 ft-lb) 5. Install the center exhaust pipe. Center Exhaust Pipe > INSTALLATION 6. Connect the ground terminal to battery sensor. NOTE |
Inspection
• Check the crossmember for bends or damage.• Check that the cushion rubber is not stiff, cracked or otherwise damaged. ...
